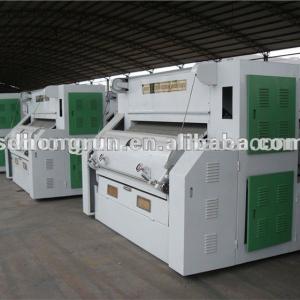

MR-144C linter machine

MR-144C linter machine, 1. strip the lint from gross cotton seed, 2. award patent, 3. low power consumption, high output - details see: http://www.machineto.com/mr-144c-linter-machine-10279189
Condition:NewType:CottonPlace of Origin:Shandong China (Mainland)Brand Name:LuMian
Model Number:MR-144CVoltage:380VPower(W):38.5KWWeight:2 Ton
Certification:ISO9001Warranty:1 YearAfter-sales Service Provided:Engineers available to service machinery overseaslinter:MR-144C linter machine
MR-144C linter machine
contact supplier for MR-144C linter machine


MR-144C linter machine

MR-144C linter machine
1. strip the lint from gross cotton seed
2. award patent
3. low power consumption, high output

MR-144C linter machine

1. It is used to strip the lint from gross cotton seed.

2. We adopt new technology, new process and new material to make the work property improve effectively, especially highlight its obvious advantages for the auto control cabinet and production efficiency .

3. It can be divided into three specifications separately used to strip the 1st, 2nd and 3rd cut lint; the 2nd and 3rd belong to air-flow type.

4. It can be used as matching equipment with other cotton ginning machine ( the match ratio depends on the actual requirements)

Main technical parameters

MR-144 C

Roller of saw-blade(φ280-φ320)×1588.73(mm)

The first of the tooth-shape angle of saw blade is 40°, the second and the third is

28°( tooth height 5-5.5mm)

Saw-blade number144 pcs
Saw-blade interval11.11mm
Max. frame inclination28-30°
Discharge-strip clearance2.8-3(mm)
Blowing-rate at lint outlet1.5-1.6 m3/s (non-load)
Wind-speed at lint outlet19-20 m/s (non-load)
Power equipped24.35 KW
Overall dimension2500×1800×1900(mm)
Weight2t

3. Motor model

Y160L-4 15KW Y132M-4 7.5KW Y90S-4 1.1KW Y80M2-4 0.75KW

Packaging Detail:standard package
Delivery Detail:20 days after down payment
