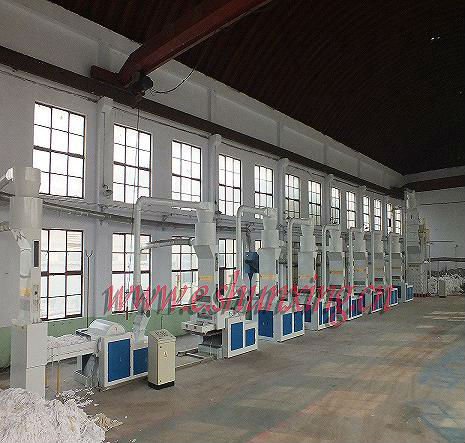

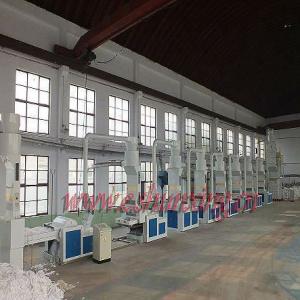

MQ-500 Textile Waste Recycling Line

1,out put:300-500kg/h, 2,the first roller opens material through nails board, 3,totally-enclosed,full automatic, 4,new style - details see: https://www.machineto.com/mq-500-textile-waste-recycling-line-10279820
Condition:NewType:OtherPlace of Origin:Shandong China (Mainland)Brand Name:Shunxing
Model Number:MQ-500Voltage:380VPower(W):179kwWeight:2000kg
Dimension(L*W*H):3200*1720*1350Certification:CE,ISO9001Warranty:ONE YEARAfter-sales Service Provided:Engineers available to service machinery overseas
certificate:CE,ISO9001out put:300-500kg/hstyle:newstructure:totally-enclosed,full automatic
MQ-500 Textile Waste Recycling Line
contact supplier for MQ-500 Textile Waste Recycling Line


MQ-500 Textile Waste Recycling Machine
Technical Data
Production: 300-500kg/hr
Cylinder: 500mm
Cylinder speed: 1200r/m
Motor size: main motor Y-160L-4 15 kw ;
Fan motor: Y100L2-4 3 KW ;
Speed reducer motor: MBW15-Y1.5-XW3-11 1.5 kw
Wire size: 2.5teeth/inch ( 4.5teeth/inch)
Host machine dimension (L*W*H): 2000 mm*1500 mm*1200 mm
MQF-500 Opening Machine
Production: 300-500kg/hr
U- Shape Wire Cylinder dia : 500mm
U-Shape wire Cylinder speed: 1200r/m
Motor size: main motor Y-180L-4 18.5 kw ;
Fan motor: Y100L2-4 3 KW ;
Speed reducer motor: MBW15-Y1.5-XW3-11 1.5 kw
Wire specially designed U-Shape wire
Feeding mat measurement: 1020mmX 2800mm
Host machine dimension (LxWxH):1800 mmx1500 mmx1200 mm
MQ-500 Textile Waste Recycling Line
Packaging Detail:naked package
Delivery Detail:three months
