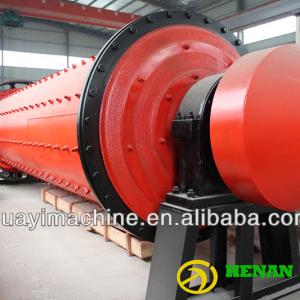

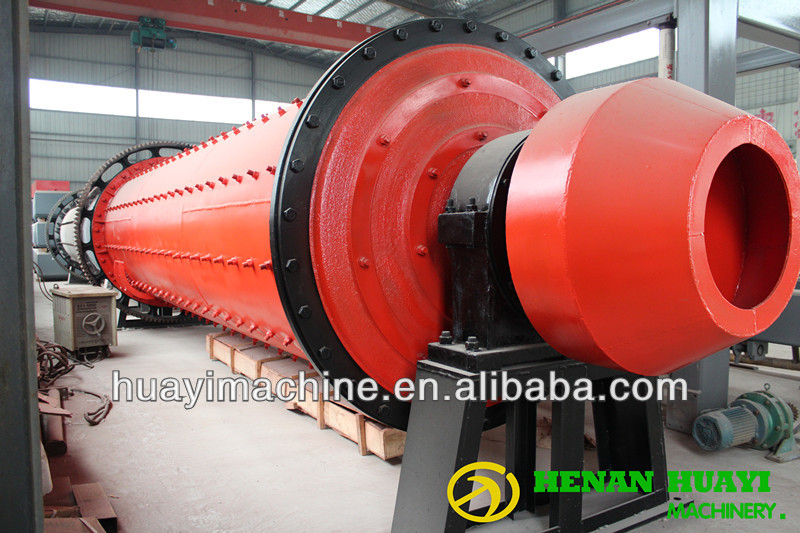

Mining grinding ball mill for ore, cement clinker, gypsum ,etc.

1) wet or dry ball mill, 2) high capacity ball mill, 3) Mining grinding ball mill for ore, cement clinker, gypsum, glass,etc - details see: https://www.machineto.com/mining-grinding-ball-mill-for-ore-cement-clinker-gypsum-etc-10314012
Condition:NewType:Ball MillMotor Type:AC MotorPower(W):several models
Capacity(t/h):several modelsPlace of Origin:Henan China (Mainland)Brand Name:HuayiModel Number:several models
Dimension(L*W*H):according to modelWeight:according to modelCertification:ISOWarranty:one year
automatic:high efficient automatic
Mining grinding ball mill for ore, cement clinker, gypsum ,etc.
contact supplier for Mining grinding ball mill for ore, cement clinker, gypsum ,etc.


Working principle
Ball mill is an efficient machine for fine powder grinding and key equipment for grinding after the crushing process. There are two ways of ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other materials.

Structure:
The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control).
Feature:
(1). Easy maintenance and operation;
(2). Big crushing ratio, uniform end product size;
(3). Simple structure;
(4). Low operating cost.

Wet Milling,Dry Milling:

(1) Newest structure
(2) Easy maintenance and operation

(3) Durable wearing parts
(4) Low operating cost
(5) Big and fine grinding ratio

Ball mill

Model

Rotate speed(r/min)

Grinding media weigh(t)

Input size(mm)

Discharging scope(mm)

Capacity

Power(kw)

Weight(t)

(t/h)
Ø900 ×180036~381.5≤200.075-0.890.65-218.54.6
Ø900 ×3000362.7≤200.075-0.891.1-3.5225.6
Ø 1200×2400363≤250.075-0.61.5-4.83012
Ø 1200×3000363.5≤250.074-0.41.6-53712.8
Ø 1200×450032.45≤250.074-0.41.6-5.85513.8
Ø 1500×300029.77.5≤250.074-0.42-57515.6
Ø 1500×45002711≤250.074-0.43-611021
Ø 1500×57002812≤250.074-0.43.5-613024.7
Ø 1830×300025.411≤250.074-0.44-1013028
Ø 1830×450025.415≤250.074-0.44.5-1215532
Ø 1830×640024.121≤250.074-0.46.5-1521034
Ø 1830×700024.123≤250.074-0.47.5-1724536
Ø 2100×300023.715≤250.074-0.46.5-3615534
Ø 2100×450023.724≤250.074-0.48-4324542
Ø 2100×700023.726≤250.074-0.48-4828050
Ø 2200×450021.527≤250.074-0.49-4528048.5
Ø 2200×650021.735≤250.074-0.414-2638052.8
Ø 2200×700021.735≤250.074-0.415-2838054
Ø 2200×750021.735≤250.074-0.415-3038056
Ø 2400×30002123≤250.074-0.47-5024554
Ø 2400×45002130≤250.074-0.48.5-6032065
Ø 2700×400020.740≤250.074-0.412-8040094
Ø 2700×450020.748≤250.074-0.412-90430102
Ø 3200×45001865≤250.074-0.4Accordingly800137

Huayi Offering AAC Block Cutting Machine with Following Annual Capacity:

50,000 m3AAC Block Cutting Machine; 60,000 m3AAC Block Cutting Machine;

100,000 m3AAC Block Cutting Machine; 150,000 m3AAC Block Cutting Machine;

200,000 m3AAC Block Cutting Machine; 250,000 m3AAC Block Cutting Machine;

300,000 m3AAC Block Cutting Machine; 350,000 m3AAC Block Cutting Machine;

400,000 m3AAC Block Cutting Machine; 450,000 m3AAC Block Cutting Machine;

Welcome to visit our factory in Wenxian,Henan,the birthplace of Taijiquan!

Mining grinding ball mill for ore, cement clinker, gypsum ,etc.
Packaging Detail:container
Delivery Detail:15 to 45 days after your order
