LYC USA SAND WASHER 5% DISCOUNTS SAND MACHINE

LYC USA SAND WASHER 5% DISCOUNTS SAND MACHINE, 1.Wearable spare parts, 2.Large capacity, 3.Suitable to various environment - details see: https://www.machineto.com/lyc-usa-sand-washer-5-discounts-sand-machine-10321094
Condition:NewMotor Type:AC MotorPower(W):differentCapacity(t/h):50-350
Place of Origin:Shanghai China (Mainland)Brand Name:LeiyueModel Number:LSX &2LSX&XSDDimension(L*W*H):depend on models
Weight:differentCertification:ISO9001:2000Warranty:1 yearAfter-sales Service Provided:Engineers available to service machinery overseas
Sand Washer Application:SAND FACTORY,ELECTRIC POLE FACTORY ETC.Sand Washer Advantage:VARIOUS ENVIRONMENTSand Washe Characteristic:SIMPLE STRUCTURESand Washer Functions:WASHING,DE-WATERING,CLASSIFYING
Sand Washer Capacity(t/h):50-350Sand Washer Water Consumption:LOWSand Washer Electric Motor:5.5-7.5Sand Washer Selected size:LESS THAN 10 MM
Sand Washer Color:RED,WHITE,YELLOW,GREEN,ETCSand Washer Design:2012 NEW
LYC USA SAND WASHER 5% DISCOUNTS SAND MACHINE
contact supplier for LYC USA SAND WASHER 5% DISCOUNTS SAND MACHINE


2LSX/LSX/XSD LYC USA SAND WASHER 5% DISCOUNTS SAND MACHINE

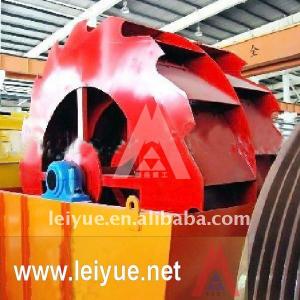

This product is mainly used for sand factory ,electric pole factory,worksite of building and concrete dam to wash ,classifying and de-watering various sands. This sand washer adopt inclination of 5°,under the water tub, three weir plates form the sediment pool. The screw head is immersed in this pool, and the screw is driven by electric motor through reducer rotating continuously, and then the fresh water is feeding from porous plate at bottom of sediment pool, this machine are three functions of washing, de-watering, classifying.

ModelHelixLengthSelectedCapacitySpeed ofElectricWaterWeight(t)Overall
diameterof tubsize(t/h)helixmotor powerconsumptionDimensions
(mm)(mm)(mm)(r/min)(kw)(t/h)(mm)
LSX9159157585≤10100211110-803.488500×2950×1930
2LSX9159157585≤10200212×1120-1605.28420×3765×2030
LSX111511159782≤10175171520-15010.1810970×3945×4720
2LSX111511159782≤10350172×1540-30017.9410970×5250×4720
XSD261026003220≤10500.85.54-4.52.73220×2125×2670
XSD301630003810≤10800.87.516.33.23400×2615×2800
LYC USA SAND WASHER 5% DISCOUNTS SAND MACHINE
Packaging Detail:Export standard(according to your requirements)
Delivery Detail:15 working days after your prepayment arrival
