1) Opeartion weight 12T, 2) Cummins Engine 6BT5.9, 3) Sauer Danfoss Hydraulic System, 4)CE ,ISO Certification - details see: https://www.machineto.com/ltc212-road-roller-construction-machinery-10121426

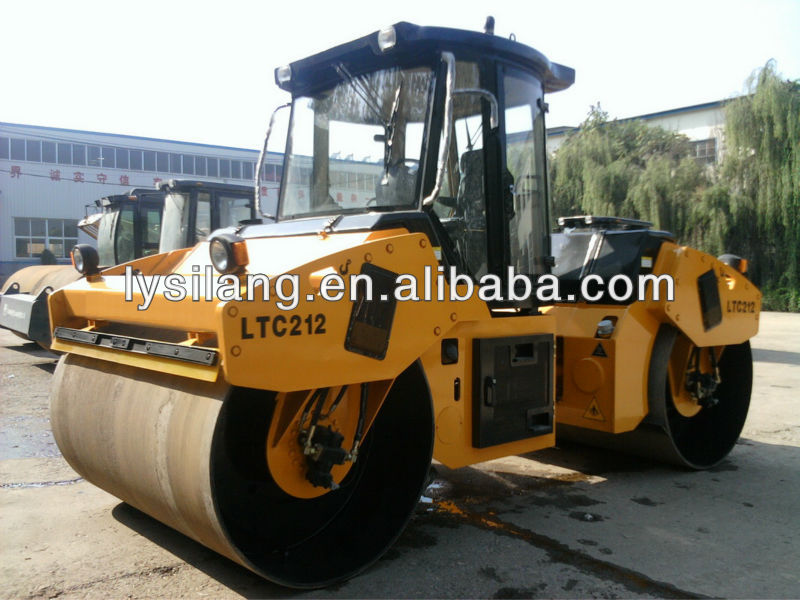

Performace of the Double Drum Double Drive Vibration Road Roller LTC2012

1. Full hydraulic two wheel drive and vibration
2. double frequency double viration system
3. Hydrostatic center articulated steering,patented crad mechanism
4. Cabin with air conditioner,confortable and spacions,the flexible steering seat facilicates the operation
5. The driver's cabin can be turned on one side as a whole,to facilitate maintenance.
6. Fork-type frame,good hold-down property.
7. Hydraulic pump and vibration motors are of the products made by American manufacturer SAUER or German manufacturer REXROTH

MODEL		LTC212	MODEL			LTC212
Operating mass	kg	12000	Travel speed	Km/h		0-12.7
Front axle load	kg	6000	Turning radius	mm		7000
Rear axle load	kg	6000	Grade ability	%		30
Static linear load	N/cm	286	Steering angle	.		±35
Form of frame		Fork-type	Drum diameter	mm		1350
Crabwise movement distance	mm	±170	Drum width	mm		2100
Water tank capacity	l	2×600	Drum rim thickness	mm		20
Fuel tank capacity	l	174	Transverse swing angle of the vibrating wheel	.		±8
Hydraulic tank capacity	l	75
Vibration frequency	mm		Type of water spray	mm		Pressure
hight ampl.		0.8	Wheelbase	mm		3717
Low ampl.		0.4	Overall length	mm		5060
Vibration frequency	Hz		Overall width	mm		2250
Hight ampl.		40	Overall height	mm		3300
Low ampl.		46	Ground clearance	mm		324
Centrifugal force	kN		Diesel model			6BT5.9
Hight ampl.		160×2	Diesel power	kw		110
Low ampl.		90×2	Diesel speed	r/min		2300
