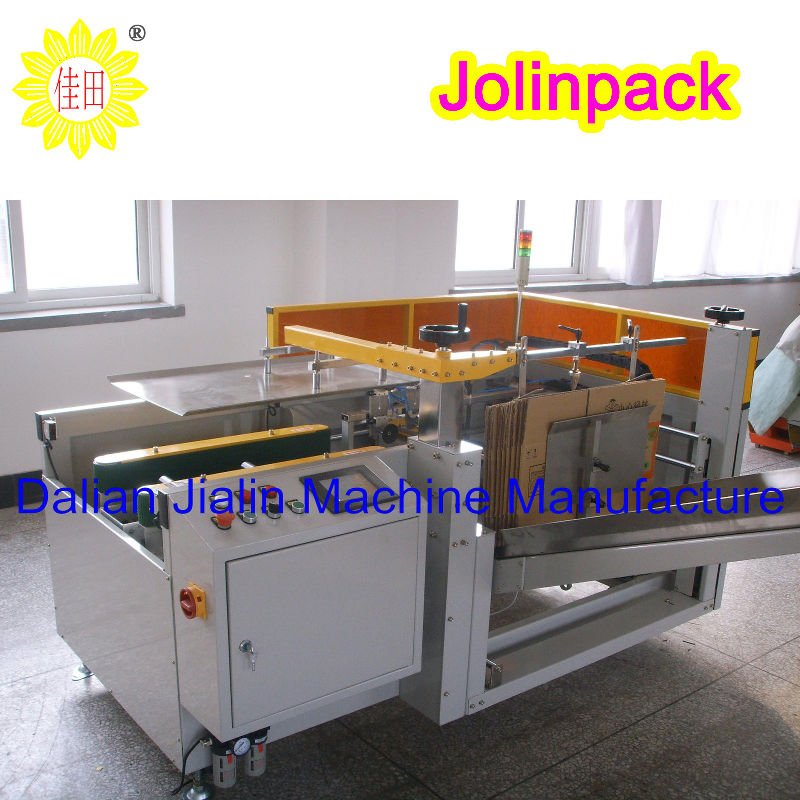

liquid packing machine (carton erector)

liquid packing machine (carton erector), 1.JTK-09 suitable to cases,cartons, boxes, 2.conpact design and easy operation - details see: https://www.machineto.com/liquid-packing-machine-carton-erector-10306733

Place of Origin:Liaoning China (Mainland)	Brand Name:Jolinpack	Model Number:JTK-09	food packing machinery certificate:CE
food packing machinery brand:Jolinpack	food packing machinery usage:erecting cartons and sealing bottom	food packing machinery size:(L)2000mm (W)1900mm (H)1200mm	food packing machinery table height:min.650mm
food packing machinery working speed:600-720 (ctns/hr)	food packing machinery case size:(L) 200-450mm (W)150-400mm (H) 100-350mm	food case packing machinery power:220/380V single phase, 50/60 Hz or, specified by client	food packing machinery tape width:48mm, 75mm alternative use
food packing machinery net weight:350KGS

contact supplier for liquid packing machine (carton erector)

liquid packing machine (carton erector)
1.JTK-09 suitable to cases,cartons, boxes
2.conpact design and easy operation
3.easy maintance.

Parameters:

Specifications
Case Packing Machine
Model	JTK-09
Carton size	L200-450W150-400H100-350mm
Table height	min. 650 mm
Working speed	600-720ctns/hour
Machine size	(L) 2000mm, (W) 1900mm, (H) 1200mm
Power	220/380V, single phase, 50/60Hz
Tape width	48mm, 60mm, 75mm (choose one)
Pneumatic	5-6kg/cm²150 L/min
Machine net weight	approx. 350kgs
Motor	Taiwan Brand, CE certified.
Pneumatic element	Taiwan AirTAC
PLC	Japan Mitsubishi
Contactor and switch	France Schneider
Photosensor	Japan Omron
Features: Perfect working on forming and sealing for soft cartons; Vertical storage is adoped to for storing carton blanks, for which carton blanks can be added at any time without stopping the machine. Auto process of grabing,forming and bottom sealing; Adjustment for cartons only needs 1-1.5 min , is the fastest inland for now; The erector is man-machine interface control (Taiwan brand 5.7 inch colour touch screen),auto updating moving process and alarming. Touch screen could help to find the fault and solve problem at the first time.

Carton sealer
Carton packer
Carton erector
Conveyors
Stretch wrapping machines
Strapping machine
Palletizers
Robot palletizers

Company Introduction:

Dalian Jialin Machine Manufacture Co., Ltd. is a professional manufacturer specialized in developing, designing, producing and installing auto conveyors (standard or nonstandard), packing machines and medical apparatus, etc.

Located in Dalian City, our company was established in 2003, covering an area of 5,300 square meters with a building area of 5,000 square meters. Total assets over USD2,500,000. There are 120 employees, including 27 professional technicians.

Being ISO9001:2000 certified, we have import and export right, and also have manufacture license of medical apparatus. We keep supplying machines worldwide reguarly and had won sound reputation among our customers. We try our best to supply the best products and services for you all the time!

If you are interested in our products, please feel free to contact us for more information.

Thanks & Best regards,

Dalian Jialin Machine Manufacture Co., Ltd.
No. 138 Guofang Road, Jinzhou District,
Dalian, China 116100
Tel: +86-411-66366707/00
Fax: +86-411-87683017

Contact person: Miss Alex Trademanager ID: cgs_jolinen
