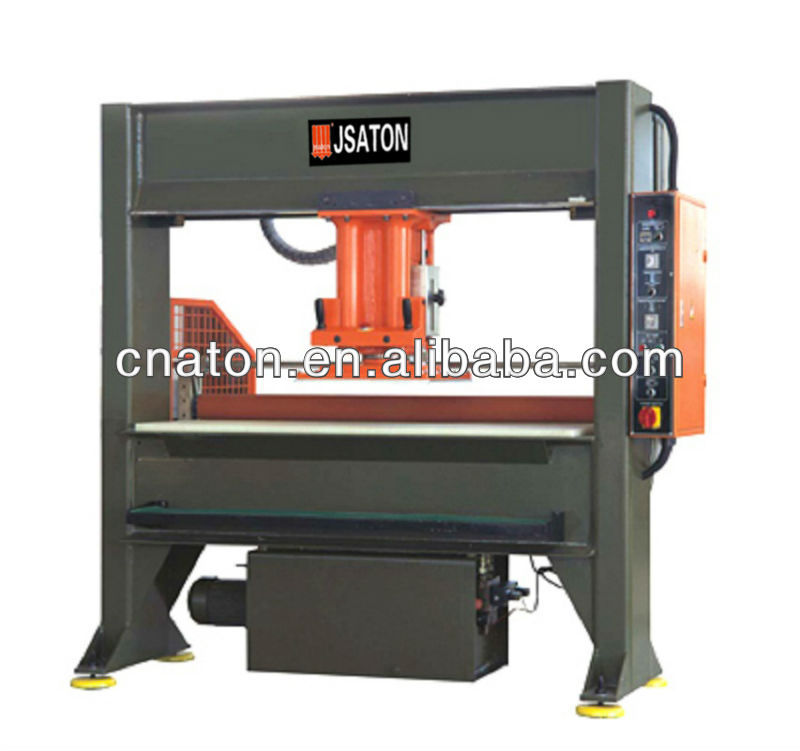

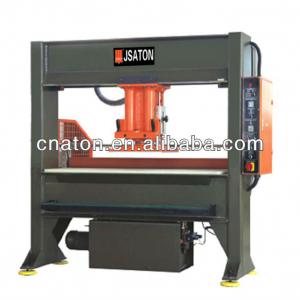

jsat series,notebook/plastic bottle machine manufacturer/manufacturing machine/machins

traveling-head machine, 1.use die mould tools, 2.saving effort,convenient, 3.operate easily - details see: https://www.machineto.com/jsat-series-notebook-plastic-bottle-machine-manufacturer-manufacturing-machine-machins-10265645

Condition:New	Automatic Grade:Semi-Automatic	Place of Origin:Jiangsu China (Mainland)	Brand Name:jsaton
Model Number:jsat series	Type:Cutting Machine,hydraulic traveling-head cutting machine	Voltage:380V/220V	Power(W):4.0KW
Dimension(LWH):2500x900x2200mm	Weight:3800kg	Warranty:one year	After-sales Service Provided:Engineers available to service machinery overseas
color:red,dark green and meet customers' need	function:wide, cutting of various nonmetal materials by die cutter	Electrical Supply:3x440/415/400/380/220/200V, 50/60 Hz

Use and character:

.Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.

.The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.

.The hydraulic system specially designed is featured by low noise and low oil consumption.

.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.

.The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.

.Differential oil way is adopted to allow rapid and convenient cutting.

.Products of special specifications can be customized.

Yancheng Atong CNC Machinery Co.,Ltd is the leading manufacturer specialized in

designing and manufacturing different kinds of cutting machines with the experience of several years.

Products have passed international quality certificate ISO9001 and European Union CE qualification.

Customer Satisfaction is our service tenet, we warmly welcome your coming and visit.

Model Number	JSAT-500
area of work table	1800x500mm
Seissor speed	0.12m/s
Dimension of press head	700x250mm
Main Cutting Force	60T
Stroke adjusting range	50-200mm
Platen to table distance	50-180mm
Electric supply	3x440/415/400/380/220V,50/60HZ
Overall dimension	2500x900x2200mm
Motor power	5.5KW+1.1KW
N.W.(approx)	5000kg
