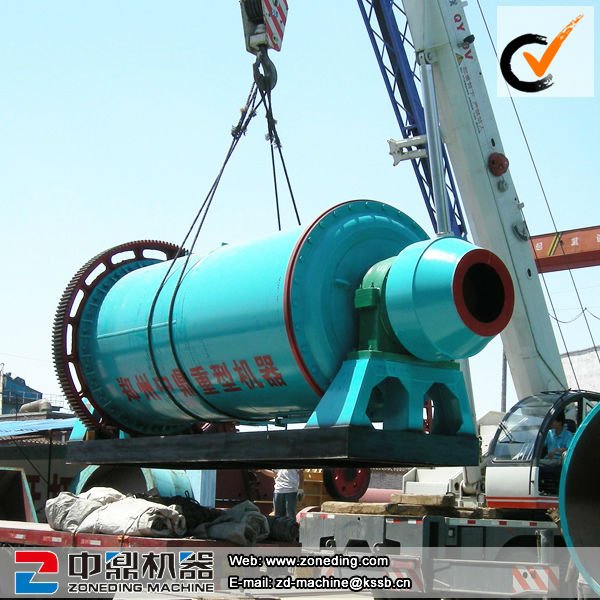

Ball mill, 1.Wet,dry ball mill, 2.Easy maintenance mill, 3.Big crushing ratio,uniform and product size, 4.Low cost,good service - details see: https://www.machineto.com/iso-ce-quality-approved-ball-mill-10313855

1. Working Principle:Ball millis an efficient machine for fine powergrindingand key equipment forgrindingafter the crushing process.There are two ways of ball millgrinding,the dry way and the wet way.It is used to grind kinds of mineral ores or to select mine.

2. Main technical parameter of Ball Mill:

Model	input size(mm)	Output size(mm)	Weight of ball(t)	Speed of bucket(r/min)	Power(kw)	Capacity(t/h)	Weight(kg)
900*1800	15	0.075-0.89	1.9	37	15	0.5-2	3400
900*2100	15	0.075-0.4	2.3	37	18.5	0.4-2	3900
900*3000	25	0.075-0.4	3.85	35	30	1.1-2.5	7780
1200*2400	25	0.075-0.4	4.6	35	30	1.3-3.2	8650
1200*2800	25	0.075-0.4	5.4	35	37	1.5-3.7	10020
1200*4500	25	0.075-0.4	8.6	35	45	2.7-6.79	14000
1500*3000	25	0.047-0.4	9	29	75	3.3-8.2	14122
1500*3500	25	0.047-0.4	10.5	29	75	3.3-8.5	15636
1500*4500	25	0.047-0.4	13.5	29	90	4.5-12	20000
1500*5700	25	0.047-0.4	17	29	110	2.6-14	25000
1830*3000	25	0.047-0.4	13.5	24	135	4-15	28000
1830*4500	25	0.047-0.4	20	24	155	4-19	32000
1830*7000	25	0.047-0.4	31.5	24	210	6-22	37500
2100*3000	25	0.047-0.4	18	22	210	6.4-28	40790
2100*4000	25	0.047-0.4	21.5	22	210	7.6-28	43454
2200*3600	25	0.047-0.4	25	21.7	245	5.2-32	44000
2200*7000	25	0.047-0.4	46	21.7	380	15-38	54000
2400*3600	25	0.047-0.4	28	21	320	8-60	47000
2400*4500	25	0.047-0.4	35	21	380	8.5-60	65000
