Iron ore processing line Ball Mill, 1.ISO 9001 certified, 2.Easy to setup,operate, 3.Engineer on site support - details see: https://www.machineto.com/iron-ore-processing-line-ball-mill-10314255

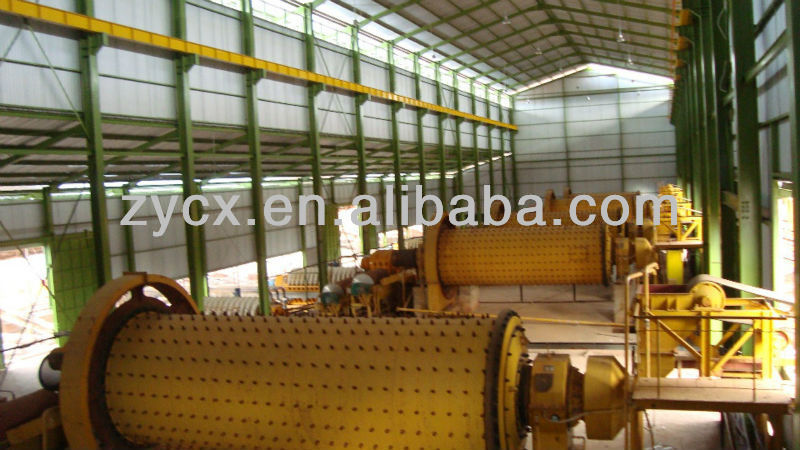

Iron ore processing line Ball Mill :

ball mill Description:
Our ball mill is widely used in mineral dressing, building materials, chemical industry and other industries, for grinding medium hardness ore and other materials; it’s divided to dry-type ball mill and wet-type ball mill according the difference for grind types; according the difference of ore discharges, it’s divided to grid-type and overflow-type; according the difference of grind materials, it’s divided to ball mill and rod mill.

ball mill Working Principle:
Ball mill,a kind of horizontal drum-type rotating device, is a grate mill withexternal gear and double bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which hasstep or waved lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding.


ball mill Specifications:

Type	Cylinder		Cylinder Rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor Power (kw)	Dimensions (mm)	Weight (kg)
	ID (mm)	Length (mm)
M1224	1200	2400	33.5-24.5	≤25	0.3-0.074	3.2-1.4	45	6047*2868*2541	13500
M1530	1500	3000	29.8-26.6	≤25		6.3-2.8	95	7447*3329*2749	17500
M1830	1830	3000	26.3-22.5	≤25		12.5-4.5	130	8007*3780*3020	33500
M1845	1830	4500	26.3-22.5	≤25		16.5-6.7	180	9510*3842*3020	35800
M2130	2100	3000	25.0-19.5	≤25		14.0-5.8	210	8623*4980*3794	45000
M2140	2100	4000	25.0-19.5	≤25		15.9-7.5	245	9623*4980*3794	48600
M2230	2200	3000	25.0-19.5	≤25		15.2-6.8	210	8650*4980*3794	46200
M2430	2400	3000	23.0-18.5	≤25		18.5-7.8	245	9379*5330*4050	48950
M2736	2700	3600	22.0-17.5	≤25		28.5-11.5	380	9765*5327*4075	78500
M3236	3200	3600	20.2-16.0	≤25		39.6-17.5	630	10360*7200*5600	118000
M3245	3200	4500	20.2-16.0	≤25		49-21	800	13000*7300*5700	128500
M3645	3600	4500	19.2-14.8	≤25		65-29	1250	15000*7700*6300	165000
M3660	3600	6000	19.2-14.8	≤25		80-32	1600	17000*8800*6300	196000
M4050	4000	5000	16.8-13.9	≤25		97-46	1600	16500*9500*7500	248000
