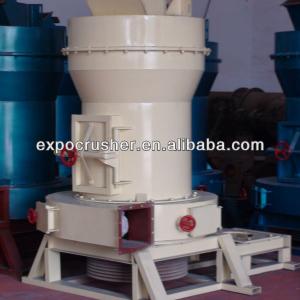

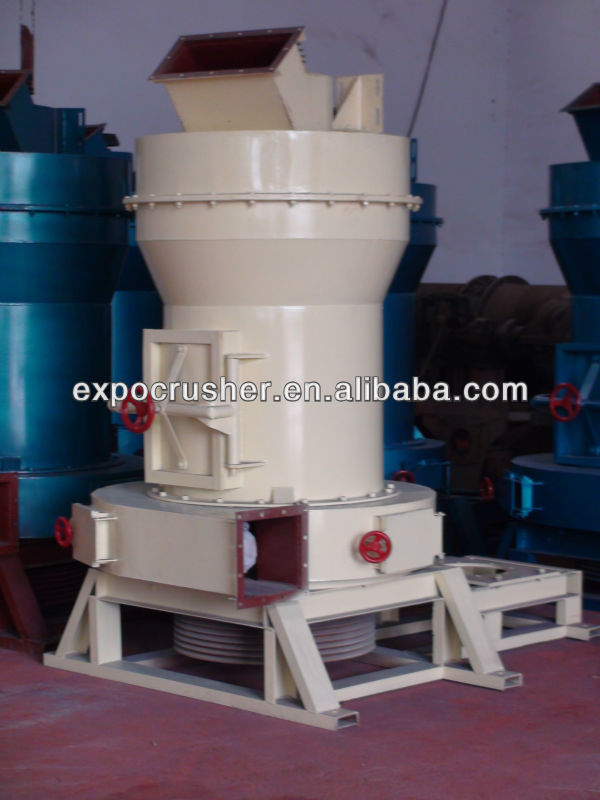

Industrial Fine Powder Grinder

Fine Powder Grinder:, 1.Highly efficient, 2.Stable working performance, 3.Simple and reasonable structure - details see: https://www.machineto.com/industrial-fine-powder-grinder-10314297

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):185
Capacity(t/h):1-3	Place of Origin:Henan China (Mainland)	Brand Name:SHIBO	Model Number:3R2615
Dimension(LWH):430035005100	Certification:ISO14001, SGS	After-sales Service Provided:Engineers available to service machinery overseas	Application:Quarry and Ore
Installation:assign engineers

contact supplier for Industrial Fine Powder Grinder

Raymond mill is widely used in mining,metallurgy,chemical engineering,building materials to grind finely more than 280 kinds of material with Mohs hardness less than 9.3 and the moisture content below 6%, such as barite,limestone,ceramic and slag. The granularity of finished product is controlled between 80 and 425 meshes (the minimum is 1000 meshes). And it can produce 30-80 meshes coarse powder by adding some special equipment.

MAIN TECHNICAL PARAMETER:

Model	Max Charge Granularity (mm)	Final Product Granularity(mm)	Shift Capacity(t/h)	Central Shaft Velocity (r/min)	Ring Inner Diameter (mm)	Roller Diameter (mm)	Height of the Ring and Roller (mm)	Motor Power(kw)
3R1410	5-8	0.125-0.044	1-10	280	405	140	100	Y160M-6-7.5
3R1815	15	0.125-0.044	1-15	200	550	180	150	Y180M-8-11
3R2615	20	0.125-0.044	2-25	165	780	260	150	Y225S-8-18.5
3(4)R2715	20	0.125-0.044	2-30	165	830	270	150	Y225S-8-22
3R2716	15-25	0.125-0.044	2-32	165	830	270	160	Y225S-8-22
3(4)R3016	15-25	0.125-0.044	3-36	152	910	300	160	Y225M-8-30
4R3117	15-25	0.125-0.044	3-37	152	920	310	170	Y225M-8-30
4R3216	15-25	0.125-0.044	3-38	130	970	320	160	Y225S-4-37
5R3818	15-30	0.125-0.044	3-44	107	1250	380	180	Y280S-4-75
5R4119	15-30	0.125-0.044	6-66	103	1280	410	190	Y280S-4-75
6R4427	15-35	0.125-0.044	9-176	103	1600	440	270	Y315M-4-132
