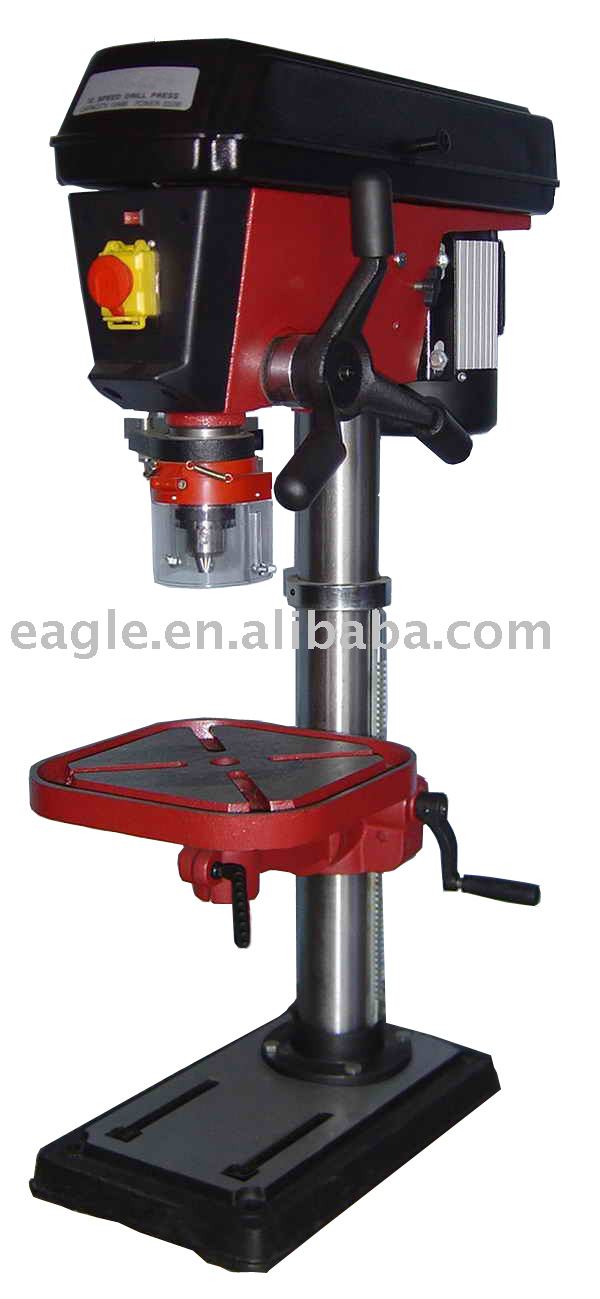

Industrial Drilling Machine
Industrial Drilling Machine - details see: https://www.machineto.com/industrial-drilling-machine-10125195
| Condition:New | CNC or Not:Normal | Place of Origin:Shandong China (Mainland) | Brand Name:eagle |
| Model Number:DX | package:plywood case |
Industrial Drilling Machine
Specification
| Model | DX 13 | DX 16 | DX 20 | DX 25 | DX 25A | DX 25B |
| Motor(W) | 180/250 | 550 | 550/650 | 1100/1500 | 750/1100 | 1100 |
| Swing (mm) | 210 | 330 | 356 | 460 | 432 | 432 |
| Chucksize (mm) | 1.5-13 | 3-16 | 3-16 | 3-16 | 3-16 | 3-16 |
| Max drilling capacity(mm) | 13 | 16 | 20 | 25 | 25 | 25 |
| Taper | JT33/B16 | MT2 | MT2 | MT3 / MT4 | MT3 / MT4 | MT3 |
| Spindle travel(mm) | 50 | 80 | 80 | 120 | 120 | 80 |
| No of speed | 5 | 12-16 | 12-16 | 10 | 12 | Variable |
| Horizontal arm travel(mm) | / | / | / | / | / | / |
| Speed range(rpm)/50Hz | 600~2500 | 210~2580/210~3340 | 120~2580/120~3000 | 150-1920 | 150-2700 | 280-2600 |
| Speed range(rpm)/60Hz | 620~3100 | 250~3050/250~4000 | 140~3050/140~3600 | 180-2300 | 180-3240 | 330-3120 |
| Overall height(mm) | 735 | 1580 | 1630 | 1670 | 1700 | 1700 |
| Packing size(mm) | 680x400x190 | (Head) 820x500x300 | (Head) 840x570x290 | 900×610×670 | 1440×650×320 | 1440×650×320 |
| (Column)1430X170X170 | (Column)1430X170X170 | 1100×230×210 | ||||
| N.G weight (kgs) | 27/26 | (Head) 53/59 | (Head) 68/72 | 245/297 | 128/138 | 100/110 |
| (Column) 17/19 | (Column) 20/22 | |||||
| Units/20"container | / | / | / | 60 | 90 | 90 |
| Item No. | 411044 | 411046 | 411048 | 411050 | 411052 | 411054 |
| *Model DX 25 :Two-speed powerful motor,Pump cooling system optional,Inclination table, Working lingt optional. | ||||||
| *Model DX 25B: Variable speed | ||||||
DX13
DX16
DX20
DX 25
DX25A
DX25B
| Packaging Detail:plywood case |
| Delivery Detail:45days |
