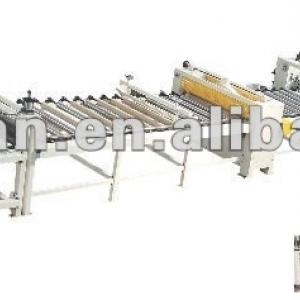

Hylranuilc press double side laminating machine, 1)Double side cleaner,spreader,laninator, 2)for paper and PVC, 3)PVAC,PVC &UF - details see: https://www.machineto.com/hylranuilc-press-double-side-laminating-machine-10345720

This production line is design for using UF glue with double separate ,which the liquid UF glue and hardener can be spreading on the board uniformity,and the highly reacted after of UF glue and hardener make the finished surface harder and waterproof

Ram materrial:

1)Decorative printed paper,PVC foils,melamine paper

2)Plywood, particleboard,hardboard,MDF broadest

3)PVAC glue PVC glue ,EVA glue and UF glue

Features

1.Double -side cleaner remove the dust from the board

2.Double-side spreader for harden or other glue

3.Preheating oven for drying out the water from the panel coming out from the hardener spreader part

4.Double-side spreader for UF glue or other glue

5.Double laminator for sticking the material on the panel surface and through the hot roller press is critical for excellent glue bond

This production line introduces the technology from German which whole production line with PLC control.6roll hydraulic pressure system and auto cutting,glue applicator and high speed dust remove.High processing speed up to 35m/min as well as simultaneous double sided lamination working the heating part for press rolls are specially constructed to realize a high and even temperature of 180 in a short time for critical for and excellent glue bond which id the ideal equipment for the large scale furniture company

Technical index

Model	HY-T-1350A Double side laminating machine	HY-T-1350B Double side laminating machine
Specification	Φ320*1350mm	Φ320*1350mm
Size of panel	1220*2440mm	1220*2440mm
Thickness of panel	3-40mm	3-40mm
Working speed	5-30m/min	5-30m/min
Width of paper	1300mm	1300mm
Total driven power	18.23Kw	14.77Kw
Heating power	85.2Kw	61.2Kw
Dimensionl	13525*4500*2750mm	10780*4500*2750mm
Weight	11600kg	8500kg
