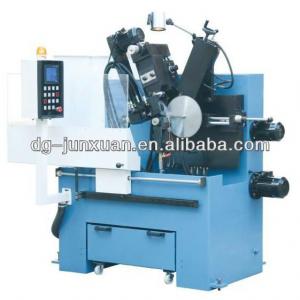

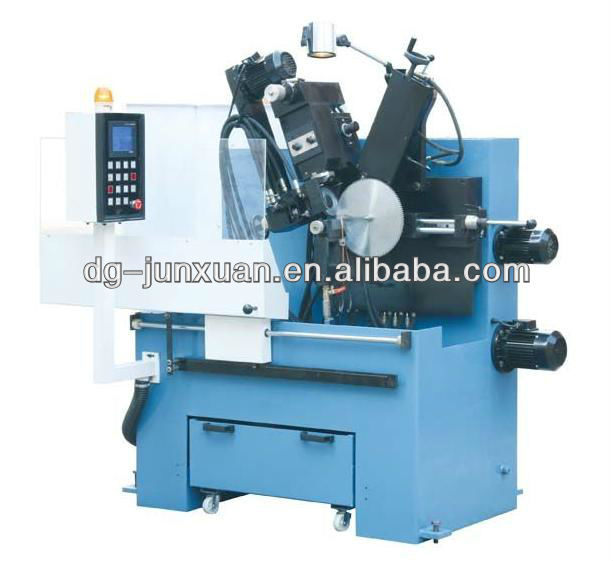

Hydraulic PLC Control Saw Blade Grinder

For sharpen carbide-tipped circular saw blades with various diameters and tooth geometries on face and top - details see: https://www.machineto.com/hydraulic-plc-control-saw-blade-grinder-10347466

Condition:New	Type:Circular Saw	Use:Woodworking	Style:Horizontal
Place of Origin:Guangdong China (Mainland)	Brand Name:Mingwei	Model Number:MW-31	Usage:sharpening
Voltage:380V	Power(W):1/2HP	Dimension(LWH):220017001850mm	Weight:1000KGS
Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas

contact supplier for Hydraulic PLC Control Saw Blade Grinder

Sharpening machine for machining all tooth geometries of TCT circular saw blades

All tooth shapes machined with maximum precision

Re-sharpening of metal cutting saw blades.

Even the often complex tooth geometries of metal cutting saw blades can be ground at the top or face in a single revolution

Short grinding times, reduced ancillary times, excellent grinding results.

Easy to operate ( all main functions set and activated at PLC control panel )

Comprehensive software integrated

Any tooth shape can be ground at the face or top in a single revolution

Easy loading and unloading of machine

Specification

Grinding capacity (Min. – Max.)	φ100mm ~ φ810mm
Saw bore diameter	from φ10mm
Grinding wheel motor	1HP
Cooling system motor	1/6HP
Blade thickness (steel plate)	8mm
Tooth pitch	6mm ~ 75mm
Tooth top	0° ~ 45°
Tooth face	0° ~ 15°
Grinding speed	up to 20 teeth/min.
Connected load	2.25 KW
Compressed air connection	40 bar
Coolant pump power	50 l/min.
Diamond wheel (Dia. x Bore)	φ125mm x φ32mm
Machine size (L × W × H)	1750 × 1600 × 2000mm
Packing size (L × W × H)	1850 × 1700 × 2200mm
Net weight	750kgs
Gross weight	1000kgs
