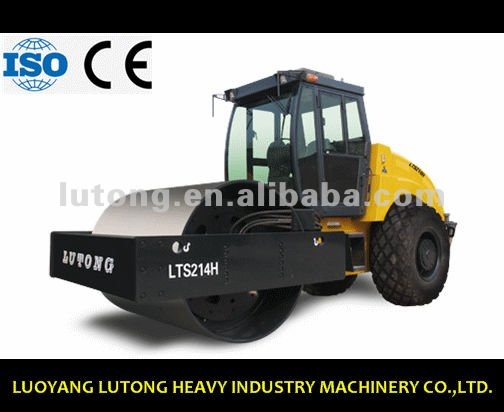

Hotselling LTS214H 14Ton Hydraulic Single Drum Vibratory Road Roller

Hotselling LTS214H 14Ton Hydraulic Single Drum Vibratory Road Roller, 1.CE&ISO, 2.Cummins Engine;, 3.SAUER travel system. - details see: https://www.machineto.com/hotselling-lts214h-14ton-hydraulic-single-drum-vibratory-road-roller-10121603

Condition:New	Type:Single Drum Roller	Static Linear Pressure:342N/cm	Travel Speed:0~12Km/h
Grade Ability:30%	Place of Origin:Henan China (Mainland)	Brand Name:LU TONG	Model Number:LTS214H
Power(W):110KW	Dimension(LWH):5860x2280x3020mm	Weight:14000Kgs	Certification:CE&ISO certificates
After-sales Service Provided:Engineers available to service machinery overseas	Product:LTS214H 14Ton Hydraulic Single Drum Vibratory compact Road Roller	Driving type:Total hydraulic pressure single drive	Color:Yellow
Drum Quantity:1

contact supplier for Hotselling LTS214H 14Ton Hydraulic Single Drum Vibratory Road Roller

LTS214H 14Ton Single Drum Hydraulic Vibratory Road Roller

Main Features
1.Power System: CUMMINS TurbochargedDiesel Engine;

2.Full hydraulic and single drive, CVT, articulated steering;

3.Cabin with Air-conditioner;
4.Travel System adopts Imported SAUER piston motor;

5.Vibration System adoptsPERMCO gear pump.

Main technical parameters:

MODEL		LTS214H
Operating mass	Kg	14000
Static linear load	N/cm	342
Vibrating amplitude	Mm	1.8/0.9
Vibrating frequency	Hz	29/35
Centrifugal force	KN	290/160
Travel speed	Km/h	12
Grade ability	%	30
Turning radius	mm	6500
Overall dimension	mm	5860X2280X3020
Vibration round width	mm	2100
Wheelbase	mm	3160
Ground clearance	mm	472
Diesel power	kW	110
Diesel model		Cummins 6BT5.9

Packaging Detail:1.Nude Package2.01unit can be packed in one 40HQ container3.Warranty Period:1-year or 1500 working hours anginst BL4.2010 YEAR exporting 25units to Congo; 2013 year exporting 15units to South Africa.

Delivery Detail:Within 30days after Confirm The Order
