Hotselling 3Ton Hydraulic Double Drive Tandem Vibratory Road Roller With CE
3Ton Hydraulic Double Drive Tandem Vibratory Road Roller, 1.POCLAIN travel motor;, 2.Reliable vibration pump;, 3.ROPS canopy. - details see: https://www.machineto.com/hotselling-3ton-hydraulic-double-drive-tandem-vibratory-road-roller-with-ce-10121409
| Condition:New | Type:Tire Roller | Static Linear Pressure:120/120N/cm | Travel Speed:0~12Km/h |
| Grade Ability:30% | Place of Origin:Henan China (Mainland) | Brand Name:LUTONG | Model Number:LTC203 |
| Power(W):23KW | Dimension(L*W*H):2760x1400x2580mm | Weight:3000Kgs | Certification:ISO&CE |
| After-sales Service Provided:Engineers available to service machinery overseas | Product:Hotselling 3Ton Hydraulic Double Drive Tandem Vibratory Road Roller | Color:White/Yellow | Drum quantity:2 |
| Drum Width:1250mm | Wheelbase:2010mm | Drum Diameter:700mm | Pump:Gear Pump |
| Motor:POCLAIN motor |

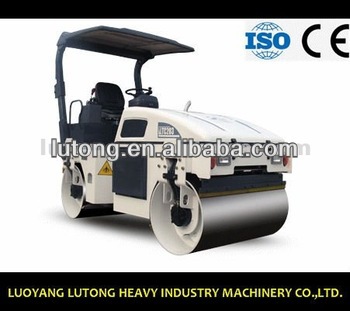

LTC203 3Ton Hydraulic Tandem Vibratory Road Roller
1.Hydraulic double drive,Hydraulic front drum vibration.
2.Rear wheel with four smooth tires, improving the grade ability.
3.Adopting Chinese ZN390 diesel engine, very convenient for use and maintenance.
4.Front blade is optional,a multi-purpose machine.
5.Low speed and high torquePOCLAIN motorand reliableGear vibration pump.
Main Technical Parameters | ||
| Model | LTC203 | |
| Operating mass | Kg | 3000 |
| Static linear load | N/cm | 120/120 |
| Vibration frequency | Hz | 50 |
| Vibration amplitude | mm | 0.5 |
| Centrifugal force | kN | 30 |
| Travel speed | km/h | 0-12 |
| Grade ability | % | 32 |
| Overall dimension | mm | 2760X1400X2580 |
| Drumdiameter | mm | 700 |
| Drum width | mm | 1250 |
| Wheelbase | mm | 2010 |
| Diesel power | kW | 23 |
| Diesel model | ZN390Q | |
| Packaging Detail:1.Nude Package2.01unit can be packed in 1*20GP container3.Warranty Time: 1-year or 1500 operating hours against B/L4.This first season 50units exported to Eritrea; 28units exported to Ethiopia |
| Delivery Detail:Within 30days after Confirm The Order |
