1.CE, 2.6 soft brush,3 sponge roller, 3.Stainless steel washing unit, 4.Max glas size:2500*3000mm, 5.Stepless speed regulation - details see: https://www.machineto.com/horizontal-glass-washing-machine-10084465

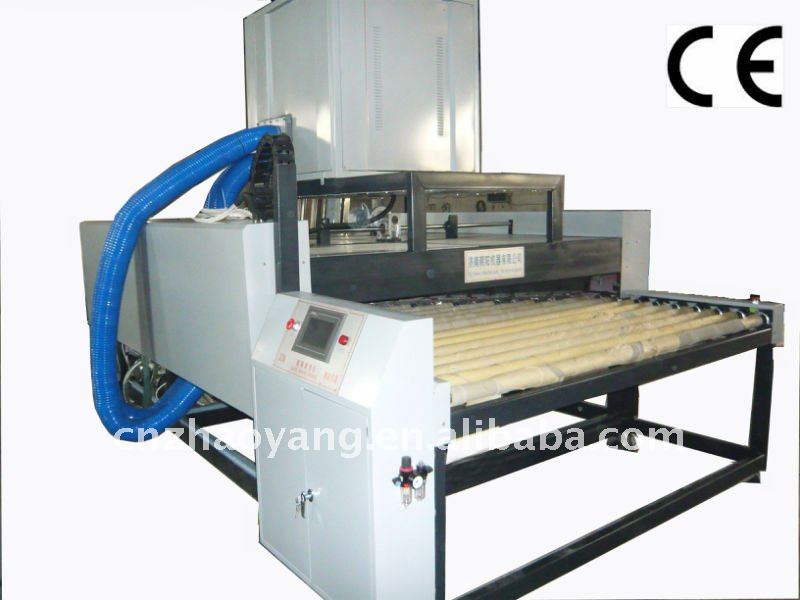

BXWJ2500 Horizontal Glass Washing Machine

Main Use:

Used for insulating glass and glass processing industry,etc..

Features:

1 All the cleaning parts and installation (including heating flange, temperature sensors, pipe, tank, etc.) are made of high-quality stainless steel material. It can be anti-corrosion, the water cycle doesn’t plug, not rust.

2 Adopt the supply water systems of two-grade filtered of two-pump cycle, The clear and turbid water is distributors, and recognizes conservation of water.

3 There were six brush cleaning match, forced brushing to make the glass cleanness better.

4 Three sucking water rollers are made of the quality polymer material, It has a strong capacity to suck water, longer life

5 The rubber roller is made up of special rubber ,formed by the grinding, good wear resistance, anti-aging, high accuracy.

6 The slide way tank with telescopic can freely drive ,very convenient to input water and inspect the water quality

Water tanks with steel glass plate can freely push and pull to prevent the dust submerged water source

7 The shelf is made of high-quality carbon steel material. The thickness of tube is 2.5 mm . The shelf is handled to spray and coat.

8 Adopt integrated equipment (the whole glass line will be conveyed roller), so the operation is much easier, more advanced. ,

Technical Data:

Power supply: 380v

Frequency: 50 hz

Total power: 14kw

Min glass size : 200*500mm

Max glass size: 2500*3000mm

Glass thickness: 4-50mm

Dimension: 5500*3000*1200mm

Options:

Component/Others	Option 1	Option 2	Option 3
Relay	CHINT,China	Omron,Japan	Custom design
A.C. contactor	CHINT,China	Omron,Japan	Custom design
Breaker	CHINT,China	Omron,Japan	Custom design
If you have any specific Parameters and requirement,customization is available.

Compare similar products:

Model	Max Glass(mm)	Min Glass(mm)	Washing Glass Thickness(mm)	Glass Washing Speed	Power	Outlook Dimension
BXWJ2000	2000*3000	100*400	3-12	0-5m/min	380v 50HZ 12kw	4500*2400*1200
BXWJ1800	1800*3000	100*400	1.8-12	0-5m/min	380v 50HZ 12kw	4500*2400*1200
BXWJ1600	1600*2000	100*400	3-18	0-3m/min	380v 50HZ 5kw	2800*2150*1100
BXWJ1500	1200*2000	400*200	3-5	0-6m/min	380v 50HZ 24kw	3500*2100*2200
BXWJ1200	1200*2500	100*200	1.8-8	0-5m/min	380v 50HZ 8kw	2500*1600*900
BXWJ1200B	1500*1200	600*400	3-5	0-6m/min	380v 50HZ 23kw	4800*1600*2300
BXWJ800	800*200	50*100	1.8-8	0-5m/min	380v 50HZ 6kw	2100*1200*900
