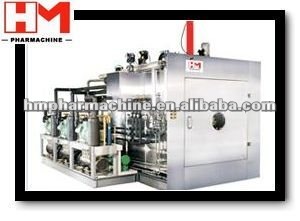

HM LY series Pharmaceutical Vacuum freezing dryer

Freezing dryer, Usage: freeze dry liquid in vials into powder quickly, Suitable: vaccine, bloody products - details see: https://www.machineto.com/hm-ly-series-pharmaceutical-vacuum-freezing-dryer-10297171

Condition:New	Type:Vacuum Drying Equipment	Place of Origin:Zhejiang China (Mainland)	Brand Name:HM PHARMACHINE
Model Number:HM LY series	Voltage:220V	Power(W):UNKNOWN	Dimension(LWH):UNKNOWN
Weight:UNKNOWN	Certification:GMP/CE	Warranty:HAVE	After-sales Service Provided:Engineers available to service machinery overseas
Processing Types:Frozen Food	Processing:freezing dry	Certificate:GMP/CE

Freezing dryer

HM LY series Lyophilizer (Freeze dryer)

Usage:freeze dry liquid in vials into powder quickly at low temperature -50-70, then press half-stopping stopper fully

Suitable:vaccine, bloody products and other biological products, bacteriophage, veterinarian, herbal extraction and healthcare products

Composition:lyophilizing cabinet and condenser
Refrigerating system
Vacuum system
Circulation system
Hydraulic stopperring system
Control system
SIP (sterilization in place)
CIP (cleaning in place).

Range:shelf temperature: -50~+70;
shelf cooling rate: 20~-40 <= 45min;
shelf heating rate: approx. 1/min;
condenser temperature: -70;
condenser cooling rate: 20~-40 <= 20min.

Model:HM LY-0.5/1/2/3/5/8/10/12/15/20/25/30/40.

Effective shelf area:0.49/0.99/1.96/2.94/5.13/8.81/9.91/12.11/14.64/20.10/24.75/29.25/40.50m2.

Capacity:calculate as D16mm 2ml vail,1950/3800/7500/11300/19700/33800/38000/46500/56300/77400/96700/114200/158000pcs/batch
calculate as D22mm 7ml vial,1000/2000/4000/6000/10450/17900/20100/24600/29800/41000/51000/60400/83500pcs/batch.

Why us:

HM PHARMACHINE provides pharmaceutical machines, laboratory instruments and professional turn-key project, high quality, economical price!

With Europe technology support and worldwide professional team cooperation, machines and project of HM PHARMACHINE match up international regulations:EU cGMP, USA FDA, WHO GMP, UK MHRA, Australian TGA, etc.

HM Combines Swiss Technology and Brand + China manufacturing, HM Swiss for EUcGMP Concept Design, validation service, Clean room Monitoring system, software program updated. And the China HM for detail Design of project, Europe standard machines, top clean room system, Top sanitary pipe system, whole project management, it with HM standard & Own manufacturing + 30 HM OEM factories under quality control of HM.

With complete engineers and engineering team, HM PHARMACHINE avoids conflict between different professions and suppliers, to make for high efficiency and quality in project, saving time and cost.
