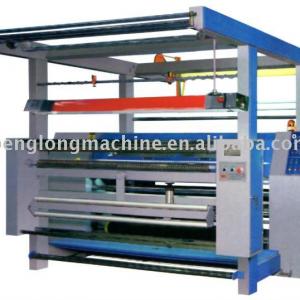

High Speed Shearing Textile Machine

High Speed Shearing Textile Machine, 1)suitable for shearing plain weaving many kinds of fabric, 2)save time and manpower - details see: http://www.machineto.com/high-speed-shearing-textile-machine-10279089
Condition:NewType:plush,velours,terry,polar fleecePlace of Origin:Jiangsu China (Mainland)Brand Name:PENGLONG
Model Number:PL-SMVoltage:accordng to requirementPower(W):7.5KWWeight:1.5t
Dimension(L*W*H):4000mm*4160mm*2450mmCertification:NoWarranty:1 YearAfter-sales Service Provided:Engineers available to service machinery overseas
Machinery:High Speed Shearing Textile MachineApplication:Plain weaving fabric,knitting,blanket,woolen etcModel No:PL-SMMachine Type:Textile Finishing Machine
Special Use:High Speed Shearing Textile MachineAdvantage 1:Easy to operate as the operating instruction sheet in EnglishAdvantage 2:Easy to install as mainly parts have essemble before shippingAdvantage 3:Fast delivery and without any delay
OEM:YesPayment term:T/T L/C at sight Western Union
High Speed Shearing Textile Machine
contact supplier for High Speed Shearing Textile Machine


Company introduction

Changshu Penglong MachineryCo,. Ltd is a famous cloth inspecting,finishing and packing machinery manufacturer in textile dyeing and finishing equippment industry,just 80km away from Shanghai,with convenient ports and good highway transportation.

Our leading products include cloth slitting-inspecting-wnding combination machines,fabric inspection machine,rope opener,fabric relaxing machine,automatic centering machine,high-speed tubular slitting machines,swarch cutter,automatic edge sewing machine,tensionless fabric inspection machine,fabric unwinding and plaiting machine,fabric folding machine,pneumatic batch winding machine,vacuum cloth packing machines,tubular slitting inspection machine,infrared hydraulic trackers and other dyeing and finishing machines and spare parts.

Factory Photos

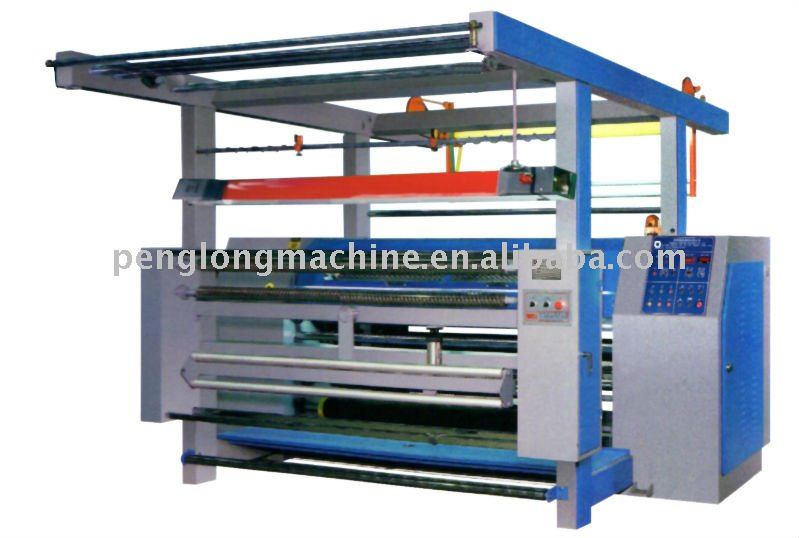

High Speed Shearing Textile Machine

Characteristics:

1.The most important part, high precision shearing unit including shearing cylinder and ledger blade is imported from Germany, which is trustworthy to make the excellent shearing

2.Adopting Schneider Inverters and PLC system which enjoys the advantage of high automation

3.Each unit is individually driven by motors. The machine speed and shearing cylinder speed are adjustable, by means of inverter controlling

4.Fabric tension is managed by inteter, which offers easy adjustment and assures the reliable quality on shearing

5.The shearing depth can be adjusted electrically at the accuracy of 0.01mm by the optical ruler

6.The shearing cylinder and base are driven by imported hydraulic system with smooth high speed when detecting the seams

7.Four pieces of spiral spreadiing rollers have heen adopted to eliminate any curled fabric edge

8.Equipped with dust absorption device and dust abatment

9.Equipped with metal detetor to alarm metal on fabrics and stop the machine automatically to protect the shearing cylinder and ledger blade

10.An auto centering decice is optional at the feeding bracket which could spread and ensure the fabrics ded in center position automatically to save manpower

11.Electrostatic eliminator is optional at the plaiting device

Technical Parameters:

Max. Fabric Width2000mm~3600mm.
Diameter of Fabric Roll600mm
Max. Speed80m/min
Main Moto1HP×3
Edge-aligning Tolerance±3mm
Dimension2150mm(L)*2300mm(W)*2500mm(H)

Welcome to enquire about our High Speed Shearing Textile Machine

Welcome to Inquiry our Machine

Packaging Detail:Packing Details:Air Bubble Film/Wooden PalletIf have any special requirements,will be pack as request
Delivery Detail:15 days
