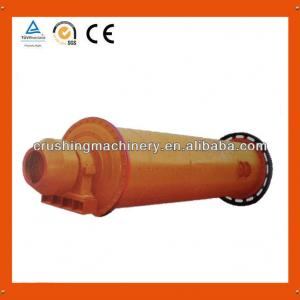

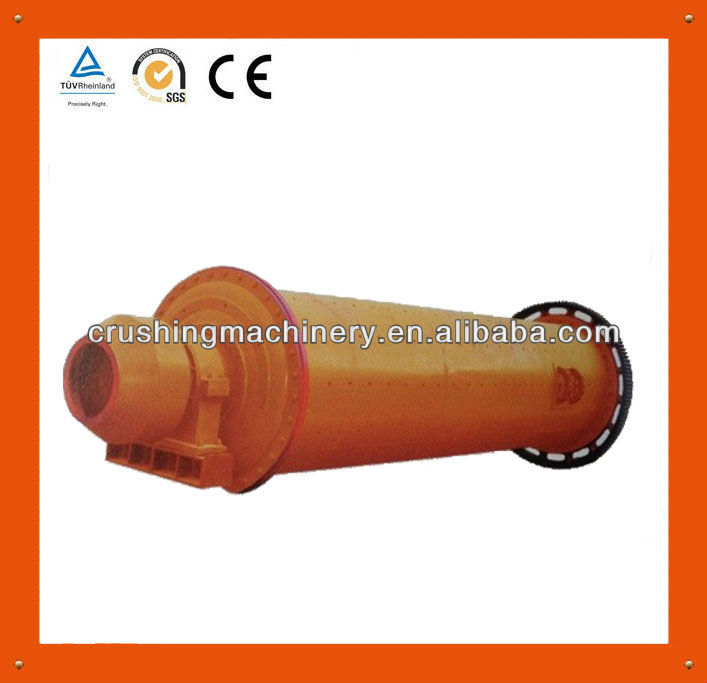

High Quality Ball Mill 900x3000

Ball Mill, 1.Adaptability to raw materials, 2.Powerful Process, 3.Convenience installation, 4.Wear-resistant material - details see: https://www.machineto.com/high-quality-ball-mill-900x3000-10314171

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):22KW
Capacity(t/h):1.1-3.5	Place of Origin:Zhejiang China (Mainland)	Brand Name:Shenqi	Model Number:900x3000
Weight:5.6t	Certification:SGS/TUV/CE	Warranty:1 Year	After-sales Service Provided:Engineers available to service machinery overseas
Max. Feed Size:≤25 mm	Discharging Size:0.075-0.89mm	Speed of Bucket:36r/m	Weight of Ball:2.7t

PRODUCT NAME

High Quality Ball Mill 900x3000

lAdaptability to raw materials

lpower, the obvious advantages of continuous operation

lInstallation,commissioning and easy to operate

lWide range of applications

lLong life

Model From ShenQi	Speed of Bucket [r/min]	Weight of Ball [t]	Max.Feed Size [mm]	Discharging Size [mm]	Capacity [t/h]	Motor Power [kw]	Weight [t]
Φ 900 x 1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
Φ 900 x 3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
Φ 1200 x 2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Φ 1200 x 3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Φ 1200 x 4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Φ 1500 x 3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
Φ 1500 x 4500	27	11	≤25	0.074-0.4	3-6	90	21
Φ 1500 x 5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Φ 1830 x 3000	25.4	11	≤25	0.074-0.4	4-10	130	28
Φ 1830 x 4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
Φ 1830 x 6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
Φ 1830 x 7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
Φ 2100 x 3000	23.7	15	≤25	0.074-0.4	6.5-36	210	34
Φ 2100 x 4500	23.7	24	≤25	0.074-0.4	8-43	245	42
Φ 2200 x 4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
Φ 2200 x 7000	21.7	35	≤25	0.074-0.4	15-28	380	54
Φ 2400 x 4500	21	30	≤25	0.074-0.4	8.5-60	320	65
Φ 2700 x 4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Φ 2700 x 4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Φ 3200 x 4500	18	65	≤25	0.074-0.4	25-130	800	137

Note: The parameters given in the above table are approximate and the actual capacity depends on the material and onditions. For more information please contact SHENQI.
