1.With high-yield,grain small degree, 2.Especially suitable for oily, 3.Easy to clean, 4.GMP - details see: https://www.machineto.com/high-efficient-dust-collecting-pulverizer-dust-absorption-crusher-dust-collecting-turbine-mill-10284774

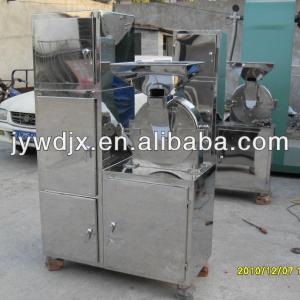

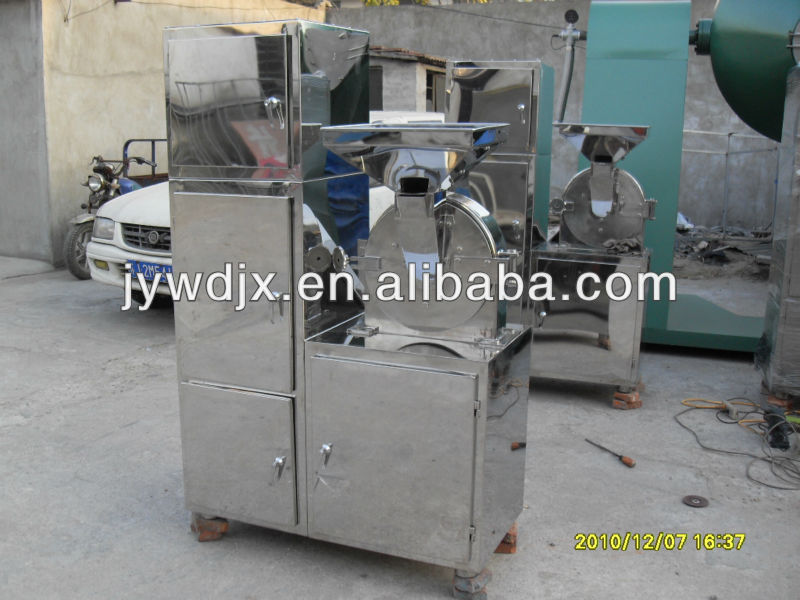

WF series chinese herbal medicine pulverizer

Main usage:

Used in pharmaceutical, chemical, food and other industry, with air cooled, no screen until a variety of performance, Chinese herbal medicine crusher not affected by material viscosity, hardness and fiber limit for any material has a good effect. Especially suitable for crushing the fiber with Chinese traditional medicine, with some grease of materials.

Working principle:

Hopper, graded by add wheel, crushing blade, tooth circle, crushing motor, the material mouth, container, vacuuming boxes and other parts, materials and into the crushing chamber by hopper, through the high speed rotating blade smash, and the classification and grading plate wheel section of the distance to meet requirements of the material in the crushing chamber continue to smash. Aggregate box bag dust produced by dust collector collection box. The unit press "GMP"; Standard design, simple in structure, convenient in operation, the noise is small, high output, and machine adopts the high quality stainless steel materials manufacturing, in the process of crushing no dust float in the sky.

Technology parameters:

Model	200	300	400
Production capacity(kg/h)	10-110	30-200	50-300
Feeding size(mm)	≤5	≤12	≤15
Crushing size(mesh)	60-320
Crushing motor(kw)	5.5	7.5	11
Aspiration motor(kw)	1.1	1.5	2.2
Overall dimension(mm) (XYZ)	1000×800×1600	1200×850×1780	1500×900×1950
Weight(kg)	320	650	800
