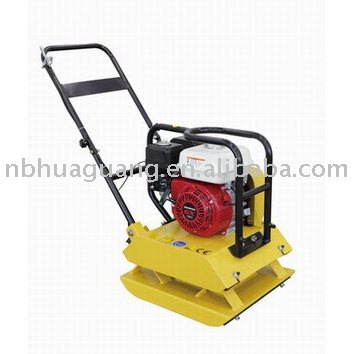

HGC80H vibratory plates

HGC80H vibratory plates, 1. Suitable for tamping asphalt, gravel and grit surface., 2. Matched with wheels for transportation - details see: https://www.machineto.com/hgc80h-vibratory-plates-10106310

Condition:New	Application:construction work	Power Type:Gasoline	Brand Name:HUAGUANG
Model Number:HGC80H	Place of Origin:Zhejiang China (Mainland)	Power(W):HONDA GX160 5.5hp	Weight:90kg
Certification:CE	Warranty:one year

Especially suitable for the sand,gravel and soil in the narrow deep channel, the edge of groundwork, metope and pier

Features

* Open plate provides self cleaning.

* Covenient for the transport with wheels, wheel assembly(optional).

* The front trunp base is conventient for approaching in the corners.

* The closed strap prevents the sand enteing into machine.

* Efficient shockproof foot reduces the sway of the engine and above handle

* Protecting frame is available as optional

Technical Specification

Model	HGC80H	HGC80R	HGC80P	HGC80D
Engine	Air-cooled,single cylinder,4-stroke
Engine Type	Petrol,Honda GX160	Petrol,Robin EY20	Chinese Petrol Engine	Chinese Diesel Engine
Power (hp)	5.5(4.0kw)	5.0(3.7kw)	5.5(4.0kw)	3.4(2.5kw)
Weight (kg)	90(198 lbs)	92(202 lbs)	90(198 lbs )	97(213 lbs )
Centrifugal force (KN)	15
Frequency (vpm)	5400
Compaction depth(cm)	30(12in)
Travel speed (cm/s)	22(9in/s)
Efficiency (m²/hr)	331(3562ft²/hr)
Plate Size(cm)	52×42(20×17in)
Dimension(cm)	58×47×71(23×19×28in)
