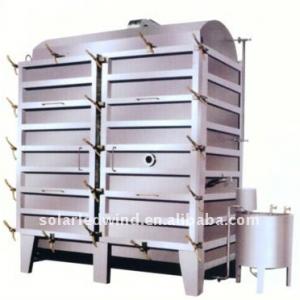

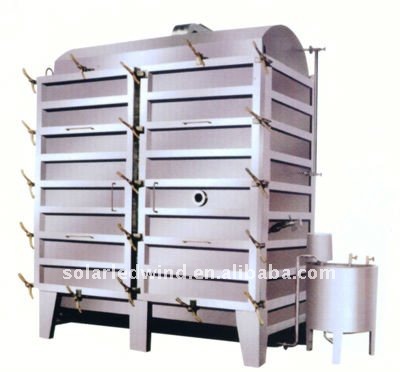

Hank Yarn Dyeing Machine

Hank Yarn Dyeing Machine - details see: https://www.machineto.com/hank-yarn-dyeing-machine-10278261
Place of Origin:Zhejiang China (Mainland)Brand Name:SNModel Number:WPS HTHP
Hank Yarn Dyeing Machine
contact supplier for Hank Yarn Dyeing Machine


Hank Yarn Dyeing Machine

Technical data:

The maximum operating temperature of 100oC

Heating Time : 20oC-100oC(about 30 minutes steam pressure of 5 kg / sq cm)

Cooling Time : 100oC- 80oC (about 15 minutes cooling water pressure to 3 kg / sq cm)

Product characteristics:
Fit for the hank yarn of various materials, such as wool, acrylic fibre , staple rayon, hemp, cotton and blended yarn.

Filling yarn once can make the processes of extrusion, refining, bleaching, dyeing and softening.

The tank connected with the dye is made of the SUS-316L (AISI-316L ), a high degree of corrosion resistance of stainless steel, or SUS 321 (AISl-321), a high-quality stainless steel corrosion resistance. The stiffening plate is made of SUS-304 (AISI-304) stainless steel, making the tank more durable.

Spindles are made of cold drawn tube with seamless precision, hard, with surface finish of 60 micron.

Indirect heating pipe line is installed on the top and in the bottom to ensure uniform temperature distribution dyes; direct heating pipe line is in the bottom. Meet all the requirements.

Circulating pump designed, four speed change to adapt to different types of yarn dyeing and finishing.

Using precise time automatic controller will automatically switch the direction of impeller rotation, making dye circulating around from top to bottom.

Bottom plate installed to eliminate eddy current, uniform surface of the tank with cycle and to effectively prevent entanglement in the process.

Put sampler deep into the hank yarn, produced with the same color of skeins in a large jar or pot,and examine sample color in the process of dyeing yarn without stopping.

Dosing barrels have stirring, heating, feeding, recycling and cleaning devices to facilitate adjustment dye.550-800mm

Bath ratio: 1:15-25.

1)machine body
2)sampling device
3)hank
4)paint bucket
5)pai cooling water valve
6)steam trap
7)plus drum drainage valve
8)feeding pump
9)feeding valve
10)main pump impeller
11)drain valve
12)pulley
13)water intake valves
14)progressive cooling water valve
15)directly into the heating steam valve
16)indirect heat into steam valve
17)thermometer
18)orifice
19)overflow tube
20)level gauge



Hank Yarn Dyeing Machine
Packaging Detail:Wooden Pallet
Delivery Detail:35 Days after Sales Confirmation
