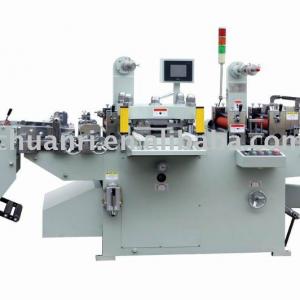

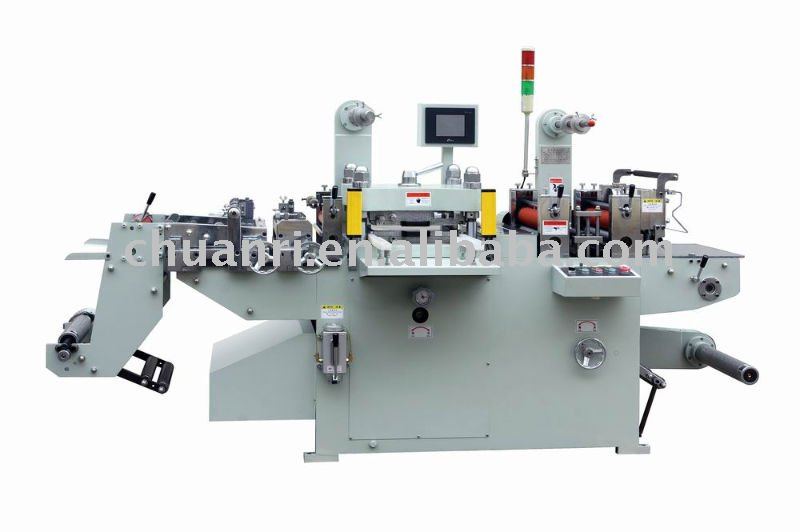

Half Cut Die Cutter Machine For PVC Film

Half Cut Die Cutter Machine For PVC Film, 1.This machine with the function of hot stamping., 2.For label,tape,film,foam,foil,etc - details see: https://www.machineto.com/half-cut-die-cutter-machine-for-pvc-film-10368651

Place of Origin:Jiangsu China (Mainland)	Brand Name:Chuanri	Model Number:MQ-320A	Driven Type:Electric
Automatic Grade:Automatic	Condition:New	Driven System:Servo Motor	Warranty:12 Months
Certification:CE

Model	320 A
Max Feeding Width ( mm )	320
Cutting Area ( mm )	300*300
Cutting Speed ( T/M )	30-170
Position Accuracy ( mm )	±0.10
Main Engine Power ( KW )	2.2
Size ( mm )	275012501400
Rewinding Diameter ( mm )	500
Voltage ( V )	220

Functional characteristics:

This machine is of platen pressing structure, computer servo system sheet drawing, and the two edges and vertical sides of the materials are tracked and located by the photoelectric eye. Feeding-waste draining-slitting or rolling, all of them are completed by the computer control by one turn.

Scope applicable:

The die cutting of sheet self-adhesive trademark, terylene film trademark, and the radium anti-fake trademark. This machine is the optimal assembled equipment for full cycle high-speed web-fed trademark printing machine, flexible edition printing machine, continuous screen printing machine, gravure printing machine and anti-fake trademark swaging hammer, and also the optimal machine model of a variety of trademark printing plants. It is also applicable to the die cutting and forming of the electronic industry, and tape goods production industry.
