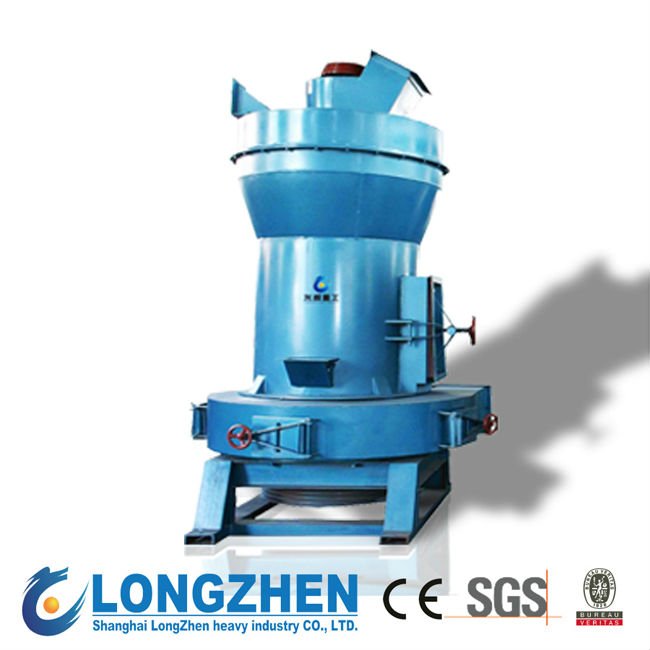

Grinding Equipment In Mining Industry

This grinding equipment can process, 1.quartz,feldspar,calcite, 2.limestone,talc,ceramic, 3.marble,granite and so on - details see: https://www.machineto.com/grinding-equipment-in-mining-industry-10314120

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):15-75kw
Capacity(t/h):0.5-10	Place of Origin:Shanghai China (Mainland)	Brand Name:Longzhen	Model Number:raymond series
Dimension(LWH):410033004500	Weight:3.8-25.7t	Certification:CE/SGS/BV/ISO	Warranty:main frames 3 years,bearings 1 year
After-sales Service Provided:Engineers available to service machinery overseas	Model:grinding equipment	Color:Optional	Certificate:SGS/CE/BV
CQC:ISO9001	Price:Negotiable	Application:Ore

Grinding Equipment Advantages

Unique design: in the host mill chamber, on the plum flower shelf devise kg-kg pressure device, under the same motive power, productivity has been increased 30%, grinding device has enhanced grinding pressure to materials –kgf, the finest final fineness can arrive mesh;
The appliance of materials is strong, they are aiming at various materials whose Moh’s hardness is below 3 grade;
The effect of dust removing meets totally the national standard;
Grinder roll device adopts superior and high efficiency processing technic, overlapping multistage seal ensures good sealing effect;
The renewal period of grinder roll and grinder ring is long, reject the disadvantage of centrifugal crusher’s renewal period of wearing parts being short;
Grinding device adopts overlapping multistage seal, sealing performance is good;

Grinding Equipment Introduction

This series of grinding mill are mainly applied to process the mineral materials which must be non inflammable and non-explosive,with Mohs hardness should be below 9.3 and humidity below 6%. There is a wide range of applications in the metallurge,building materials,ch emical industry,mining,highway construction, water conservancy and hydropower industry and so on.This kind ofgrinding millis the ideal choice to process quartz,feldspar,calcite,limestone,talc,ceramic,marble,granite,dolomite, bauxite,iron ore,barite,bentonite,coal and other materials.The size of the end products can be adjustable from 0.033mm to 0.613mm.

Grinding Equipment Detail Data

crusher machine	ROLLER NUMBER (PIECE )	ROLLER SIZE (LXH) (MM )	RING INSIDE DIA. AND HEIGHT (MM)	MAX EED SIZE (MM)	FINENESS OF PRODUCT (MM)	CAPACITY (T/H)	MAIN FRAME POWER (KW)	WEIGHT (T)	OVERRALL DIMENSIONS (MM)
YGM65	3	210x150	650x150	15	0.613-0.033	0.4-1.8	15	3.8	4100x3300x4500
YGM75	3	260x150	780x150	15	0.613-0.033	1.0-3.0	18.5	4.8	4300x3500x5100
YGM85	3	270x140	830x140	20	0.613-0.033	1.2-4.0	22	8.5	5300x4100x5200
YGM95	4	310x170	950x170	25	0.613-0.033	2.1-5.6	37	16.0	7100x5900x7900
YGM130	5	410x210	1280x210	30	0.613-0.033	2.5-9.5	75	25.7	7900x8000x9700
