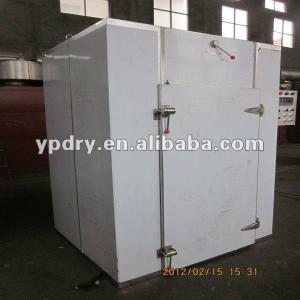

GMP Chinese traditional medicine drying Oven/drying oven/medicine oven

GMP Oven, .Used for heating are steam,electricity, .The temperature can be controlled., .The innner wall of oven body is well - details see: https://www.machineto.com/gmp-chinese-traditional-medicine-drying-oven-drying-oven-medicine-oven-10289866
Type:Drying OvenPlace of Origin:Jiangsu China (Mainland)Brand Name:YepingModel Number:GMP
Product Type:oven equipmentheating methods:steam,electricity,etcstructure:uniqueclean:easy
dry each time amount:35-480powder of fan:0.45-1.8consumption of steam:8-72baking pan:16-192
GMP Chinese traditional medicine drying Oven/drying oven/medicine oven
contact supplier for GMP Chinese traditional medicine drying Oven/drying oven/medicine oven


GMP Chinese traditional medicine Drying oven

GMP drying oven

Descriptions

The heat source of this drying Oven used for heating has steam,oil,eletricity,both steam and electricity four qays.
Operation temperature:steam,50~140,Max,150;
electricity,50~350;oil,150~250.
The temperature can be controlled autoatically. Moreover it can be recorded through recorder.
The inner wall of oven body is welded, Every place of transition adapts circular are and no dead angle.
The seal property of whole machine is good. Being adapted unique guide rail seal apparatus,the seal property can be guaranteed.
The double doors of oven can be assembled and disassembled quickly in order to clean conveniently.
The control system has text display and touch screen for your choice.
The whole machine is in conformity with requirements of GMP.

Technical parameters

Parameters / modelEach of dry(kg)Fan Power(kw)Consumption of steam(kg/h)...Bake vehicles (cars)Hung was (only)W × deep × high(mm)Temperature difference from top to bottom°C
GMP-o350.458/161130×1100×1750±2
GMP-l1200.45182482300×1200×2000±2
GMP-ll2400.9364962300×2200×2000±2
GMP-lll3601.355461442430×2200×2000±2
GMP-lv4801.87281924460×2200×2290±2




GMP Chinese traditional medicine drying Oven/drying oven/medicine oven
Packaging Detail:wooden case
Delivery Detail:30 Days
