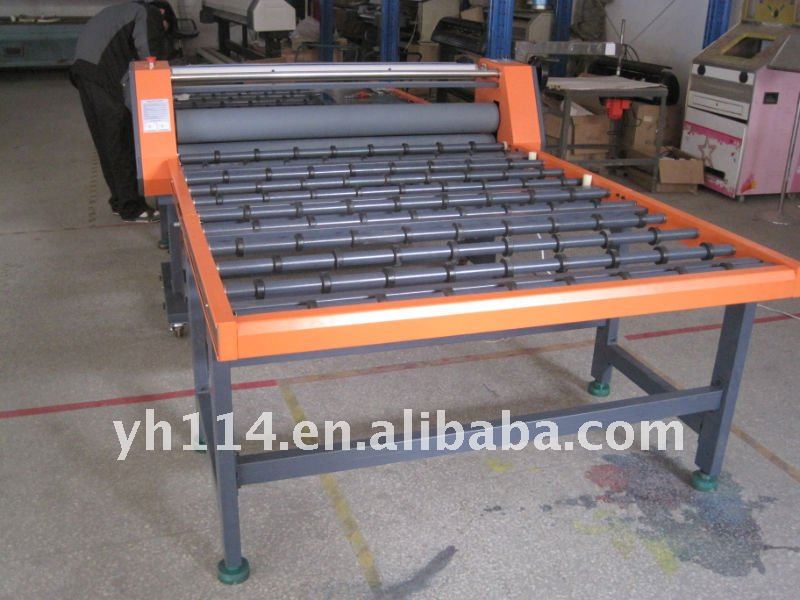

Improve quality, Infrared temperature control, temperature control is more precise. - details see: https://www.machineto.com/flatbed-laminator-10085031

Improve success rate

The takeup part can be ajusted to improve the ductility of the coat without wrinkle.

Adaptive pressure device,and there is no need to frequently adjust the coating pressure.

Improve efficiency , reduces labor costs

Automatically reveal the base coat to save labor.

Continuous laminating of the same thickness of the plates.

Complete 360m2/h by one or two people.

Long machine life , low maintenance costs

Foreign silicone rubber roller, thermostable, good elasticity, anti-aging.

The seamless thickened rolling roller of steel pipe can be used for a long time without deformation.

Using an independent rubber band that can be replaced individually.

A multi-purpose machine

Can be used for hot and cold laminating of pictures and other materials.

Laminate the crystal and greatly reduce coating cost.

All the flat plate materials can be laminated.

Specification:

Max width 1300/1900mm

Roller upgrade Unilateral linkage

Fixed input power 2500w

Max thickness 30mm

Roller heating Internal heating by infrared

Fixed input volt 110/220v

Speed 0—8m/min

Preheat time 10—15mins

Net weight 300/450kg

Temp range room-120C

Power consumption 0.8—1kw/h

Dimensions 2000x1560x1400mm

YHM-1350/1950--B1 Configuration

120W adjustable deceleration torque motor

Platform of Model 1950 can be flipped

130mm diameter foreign thermostable upper rubber roller

Unilateral balanced regulator hand wheel.

Adaptive compression devices (origin)

Non-contact infrared temperature measurement system (origin)
