Glass mosaic furnace is mainly used for producing 6 to 10(mm) colored glaze (parent color) glass mosaic products - details see: https://www.machineto.com/enamel-glass-mosaic-furnace-10085236

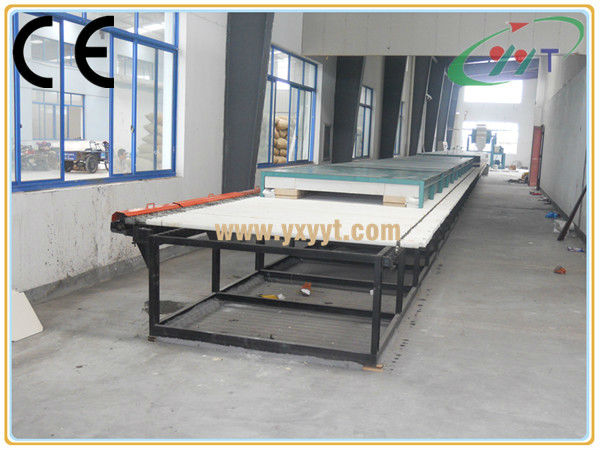

Colored glaze glass mosaic production line

Product description: this furnace is mainly used for producing 6 to 10(mm) colored glaze (parent color) glass mosaic products; the production line mainly consists of an experimental furnace, a ball mill, a shaking screen and a bead machine; the total length of the furnace is 28 to 36 meters, the maximal use temperature is 850°C; and the monthly production is 5,000 to 20,000

square meters

Introduction: the colored glaze glass mosaic, namely parent color crystal glass mosaic is a novel glass mosaic product which is popular in recent years; a slab white glass (broken glass) is grinded, filtered, added with pigment withproperamount,stirred, and pressed by the bead machine to form plain films with variouspecifications; and the plain films are sintered, developed and molded.

Features: strong third dimension, bright and transparent color, non-fadedness relative to glaze glass mosaic.

Main technical parameters:
(1) Furnace length: 28 to36 meters, splicing type
(2) Section of furnace mouth: 0.8 to 1.3 meter (two plates or three plates)
(3) Maximal use temperature: 850°C(temperature adjustable)
(4) Electric power: 120 to 250(Kw/380V)
(5) Heating mode: electric heating
(6) Electrothermal element: furnace wire and silicon carbide rod
(7) Temperature control mode: PID intelligent digital display temperature control, SCR module control, linear proportional output, manual and automatic regulation, and temperature control precision ±1°C (the remote control by computers can be designed)
(8) Temperature control point: 4 to 6
(9) Roller specification: φ40mm high-aluminum ceramic roller
(10) Transmission mode: bevel gear
(11) Roller speed control: secondary variable-frequency speed regulation
(12) Cooling mode: natural cooling or forced cooling
