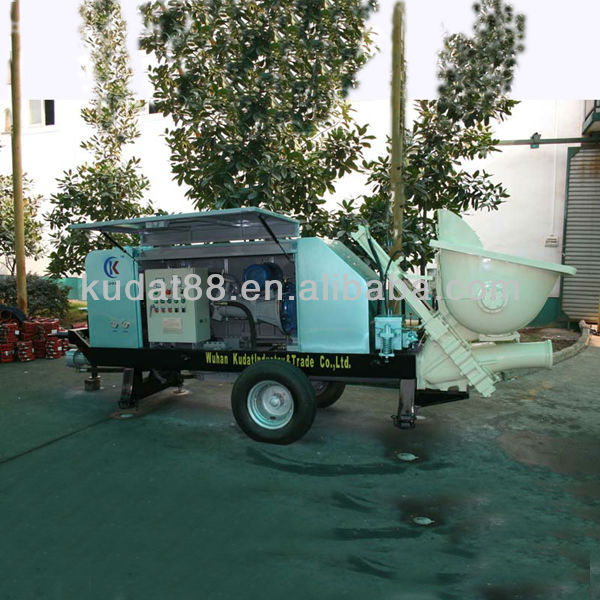

Electric and Diesel Mobile HBT30-1407 CE Concrete Pump

trailer concrete pump:Slide valve, diesel concrete pump, Mobile concrete pump, concrete pump:27m3/h productivity - details see: https://www.machineto.com/electric-and-diesel-mobile-hbt30-1407-ce-concrete-pump-10092784

Condition:New

Place of Origin:Hubei China (Mainland)

Brand Name:kudat

Model Number:HBT30-1407

Electric and Diesel Mobile HBT30-1407 CE Concrete Pump

contact supplier for Electric and Diesel Mobile HBT30-1407 CE Concrete Pump

HBT30 & HBT40 concrete pump main spec:

Specification	HBT30-1407	HBT40-1406
Valve	Slide valve	Slide valve
Max. concrete pump pressure	7.4Mpa	6.4Mpa
Max. thero. Concrete delivery	27m3/ h	36 m3/ h
Max. vertical delivery	110 M	100 M
Max. horizontal delivery	500 M	450 M
Max. aggregate size	40(125A)	50(150A)
Diameter of delivery cylinder ×stroke	195×1400mm	195×1400mm
Slump	8-23cm	8-23cm
Oil cylinder ×stroke	100×1400mm	90mm×1400mm
Hopper capacity/ material feeding height	0.25/1380 m3/mm	0.25/1380 m3/mm
Main electric motor	45kw(37kw optional )	45kw(37kw optional )
Mixing electric motor	4kw	4kw
Power supply	380V/50Hz	380V/50Hz
Total quality	2600kg	2600kg
Overall dimension	5060×1200×1760mm	5060×1200×1760mm

Packaging Detail:it can be loaded in container

Delivery Detail:within 30 days
