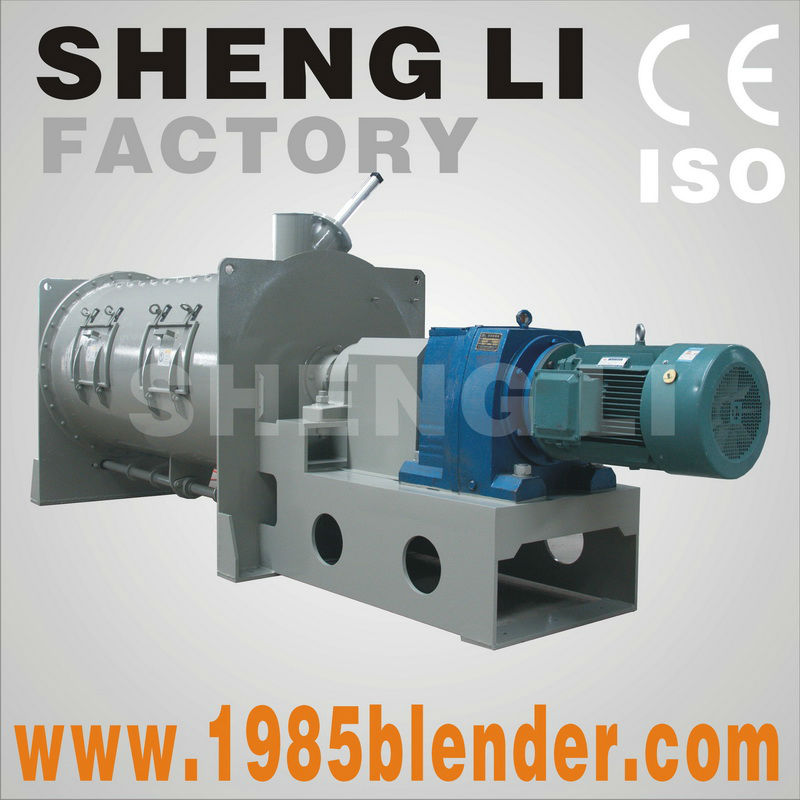

Dry powder mixer

Dry powder mixer:, 1) Material: mild steel, stainless steel., 2) Batch capacity: 40-18000kg., 3) Mixing machine. - details see: https://www.machineto.com/dry-powder-mixer-10297950

Condition:New	Mixer Type:plough agitator	Application:Powder	Additional Capabilities:heating, cooling,spraying
Place of Origin:Shanghai China (Mainland)	Brand Name:shengli	Model Number:LDH	Certification:CE, ISO, BV,SGS
Warranty:12 months	After-sales Service Provided:Engineers available to service machinery overseas	model:LDH-0.1~~LDH-10	material:ss/ms
choice:choppers	application1:flour mixing	application 2:chemical material mixing	application 3:soap/detergent powder mixing
application 4:construction material mixing

Dry powder mixer:

Video: www.1985blender.com/videoLDHS.html

1, Scope of application:
LDH Plow Mixing agitator is widely used in the mixture of chemical materials, pigment, pharmaceutic materials, feedstuff, especially in the mixture of fragile solid grain; In a short time, the mixer has good mixing effect for the materials which has a great difference in grain and density.

2, Working Principle:
Its coulter in its horizontal shell rotates together with principal axis and makes the materials radial circling flow along the wall; the radial materials flows through flying cutters, and falls apart by rotating flying cutters; the materials can be mixed uniformly in a shorttime.

3, Specification:

Type(m³)	Power(kw)	Rotate Speed(R/min)	(kg)(m³)/Batch	Dimension(mm)	Weight
LDH-1	11	85	<600	3170×1530×1300	1800
LDH-2	18	63	<1200	4500×1720×1500	2530
LDH-4	30	56	<2400	4900×1820×1900	5000
LDH-6	37	41	<3600	5230×1950×2020	7800
LDH-8	45	22	<4800	6600×1980×2120	9300
LDH-10	5 5	22	<6000	7500×2100×2320	10500

4, Special parts/components:

chopper:

High-speed crushing device-chopper.

Multi-structure high-speed choppers/blades crush the materials with the help of strong clashing force and eccentricity.

cleaning door:

The door(s) on the body can be used to clean, check and analyze the material.

motor:

The main motor and assistant motors control the main axis and choppers/blades respectively, user(s) can start the motors successively according to the designed computer program.
