Dry-Mix Shotcrete Machine from Manufactory

dry-mix shotcrete machine, 1,simple structured;, 2,easy maintenance;, 3,high-effective, 4,long service life. - details see: https://www.machineto.com/dry-mix-shotcrete-machine-from-manufactory-10096650
Condition:NewMax. Conveying Distance:200mMax Aggregate Size:20mmHose Inner Diameter:38 mm
Air Consumption:3-10 m3/minPlace of Origin:Shandong China (Mainland)Brand Name:China CoalModel Number:PZ-5B
Voltage:380vPower(W):7.5KW, 5.5KWWeight:260-700KGCertification:ISO, SGS
Warranty:12 monthsshotcrete machine:concrete shotcrete machine
Dry-Mix Shotcrete Machine from Manufactory
contact supplier for Dry-Mix Shotcrete Machine from Manufactory

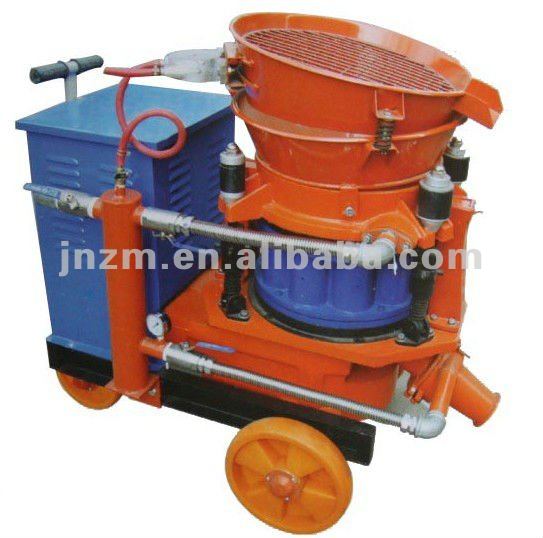

Dry-Mix Shotcrete Machine

Shotcrete machineis widely used in engineering and construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations.

Model ZMKJ005
Production ability 5.5m3/h
Max transmission distance 200m
Cement/gravel 1:3-5
Water cement ratio ≤0.4-0.45
Biggest orthopaedic particle size Φ20mm

Transporting pipe inner Φ50mm
Work pressure 0.2-0.4Mpa
Air consumption 7-8m3/min
Feed height 1.1M
Rotor speed 11r/min
Power 5.5kw
Grade of voltage 380v/660
Machine gauge 600mm/762/900mm
Dimension(length*width* height) 1520×820×1280mm

Overall weight 700kg


We have all kinds of shotcrete machines ,welcome your inquiry!

Dry-Mix Shotcrete Machine from Manufactory
Packaging Detail:suitable for export packing
Delivery Detail:within 15 days
