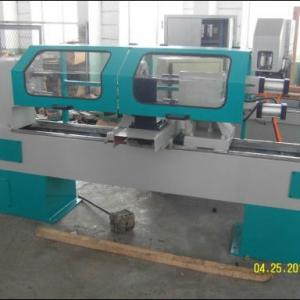

Double axis CNC wood turning lathe ZCK150S2

Double axis cnc wood turning lathe, CNC wood turning lathe, wood copy lathe - details see: https://www.machineto.com/double-axis-cnc-wood-turning-lathe-zck150s2-10352384

Condition:New	Place of Origin:Shandong China (Mainland)	Brand Name:ZQM	Model Number:ZCK100S2
Voltage:customer needs	Power(W):4kw	Weight:1500kg	Dimension(LWH):300010001500mm
Warranty:2	After-sales Service Provided:Overseas service center available	Accurancy:0.1mm	Spindle speed:3500rpm/min
Programme:before shiping machine	cutter:2pcs( 10pcs for free)	Soft disc:including	package:plywood case
Delivery time:20 days	spindle diameter:60mm	max processing length:1000mm

Double axis CNC wood turning lathe ZCK150S2

contact supplier for Double axis CNC wood turning lathe ZCK150S2

Double axis industrialCNCwood turning latheZCK150S2

CNC wood turning latheMain feature:

1. Executive component:It adopt high precision stepping motor drive, programm caculate can ensure the processing size accurated.

2. Feeding part:It adopt high precision straight line sliding rail and precision ballscrew drive , effective control the straight line error.

3.Power section:It adopt frequency control system, rotation speed can be adjusted at any time to settle the timber vibration problem.

4.Spindle part:It divided into single axis and double axis, single axis can be equiped chuck, double axis can processing two piece wood at one time.

5.Auxiliary section: The body structure is stable and rigid, vibrate small!

CNCwood turning latheparameter:

Type	ZCK150S2
Two axis center distance	165mm
At same time processing 2 axis max diameter	¢160mm
Spindle diameter	¢60mm
Spindle head	M40*2
Spindle speed	3500rpm
Only upper axis Max processing diameter	¢300mm
Max processing length	1500mm
Min setting unit	0.1mm
Max feeding speed	2000mm/min
Spindle motor power	4kw( frequency control)
Overall dimension	300010001500mm
Weight	1500kg
