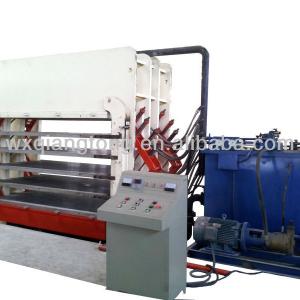

Door skin press/ Laminating hot press/ Door skin press machine/ Multi layers door skin hot press

1.Multi layers hot press, 2.Hot press for door skins, 3.Door skins, 4.Hydraulic hot press - details see: https://www.machineto.com/door-skin-press-laminating-hot-press-door-skin-press-machine-multi-layers-door-skin-hot-press-10346163
Condition:NewType:Hot PressApplication:HDF/ PB door skinPressure:8000kn~12000kn,From 8000KN to 16000KN
Place of Origin:Jiangsu China (Mainland)Brand Name:QiangTongModel Number:DY800~1600Voltage:380V
Power(W):22kw~30kwWarranty:12 month after deliveryAfter-sales Service Provided:Engineers available to service machinery overseasDoor size:3'x7' 4'x8'
Daylight opening:3 layers, 4 layers, 5 layers
Door skin press/ Laminating hot press/ Door skin press machine/ Multi layers door skin hot press
contact supplier for Door skin press/ Laminating hot press/ Door skin press machine/ Multi layers door skin hot press


Application:

Hydraulic hot press for laminating door skins

Brief introduction about DY series door skin press

The DY800~1600 series multi-daylight hot press which is based on the YX series is developed for producing melamine MDF surface of wooden doors. The synchronizer makes all platens going up and down at the same time. Platens can stop at any position according your operation. The pressure and time of holding pressure are adjustable and flexible. You can select the automatic and manual type easily by an electrical switch.

DY800~1600 series multi-daylight hot press for wooden door

Oil cylinder positionOn request
Closing methodSynchronizer
Feed directionCrosswise
Closing time with loading max s15
Pressure max Mpa25
Temperature of platen C210
Control methodPLC
Heating mediumThermo oil
Non-standard panel size on requestAvailable
Melamine MDF door skin (surface)Available
Veneer door skin (surface)Usage

All kinds door skin press machine:

Character

Model

End

panel size

(ft)

Nominal

pressure

(KN)

Hot platen size

(mm)

Daylight opening

(max mm)

Main oil cylinder (dia x stroke x pcs)

DY800

3 daylights3 x 780001150x2250x70250Φ440x920x4
4 daylights3 x 780001150x2250x60250Φ250x1000x8
5 daylights3 x 780001150x2250x60250Φ280x1250x8

DY1200

3 daylights

3 x 7120001150x2250x70250Φ280x920x8
4 x 8120001400x2600x70250Φ320x920x6

4 daylights

3 x 7120001150x2250x60250Φ280x1000x8
4 x 8120001400x2600x60250Φ320x1000x6

5 daylights

3 x 7120001150x2250x60250Φ280x1250x8
4 x 8120001400x2600x60250Φ320x1250x6

DY1400

3 daylights4 x 8140001400x2600x70250Φ340x920x6
4 daylights4 x 8140001400x2600x60250Φ340x1000x6
5 daylights4 x 8140001400x2600x60250Φ340x1250x6

DY1600

3 daylights4 x 8160001400x2600x70250Φ380x920x6
4 daylights4 x 8160001400x2600x60250Φ380x1000x6
5 daylights4 x 8160001400x2600x60250Φ380x1250x6
Door skin press/ Laminating hot press/ Door skin press machine/ Multi layers door skin hot press
Packaging Detail:Standard which is suitable for ocean transport
Delivery Detail:60 days after ordering
