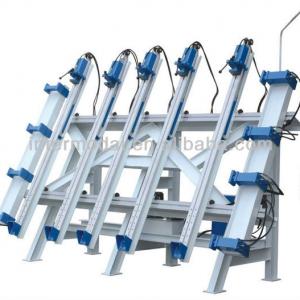

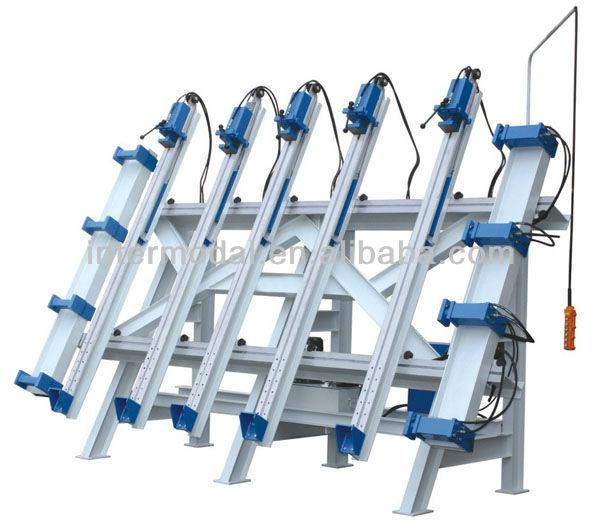

Door and window assembler machine
Door and window assembler machine, We supply different door and window assembler machine. - details see: https://www.machineto.com/door-and-window-assembler-machine-10325950
Place of Origin:Shandong China (Mainland) | Brand Name:MNTOOLS | Model Number:MT812B | |
Door and window assembler machine
Model No. | MT480 | MT480A-2 | MT812B |
Max. compose dimension | 1220*2440mm | 1220*2240mm*2 | 2500*3600mm |
Upper oil cylinder | φ50*250st*4pcs | φ63*250st*4pcs*2 | φ63*150*5pcs |
Upper pressure | 4t*4pcs | 5t*4pcs*2 | 5t*5pcs |
Side oil cylinder | φ50*250st*2pcs | φ63*250st*1pcs*2 | φ50*100*4pcs |
Side pressure | 4t*2ocs | 5t*1pcs*2 | 4t*4pcs |
Front pressure cylinder | | φ50*200st*3pcs*2 | |
Front pressure | | 0.8Mpa*2 | |
Oil pump power | 2.2kw | 2.2kw | 2.2kw |
Overall dimension | 3230*1900*1620mm | 4200*2300*2250mm | 4200*1500*3100mm |
Packaging Detail:Exporting package |
Delivery Detail:20days |
