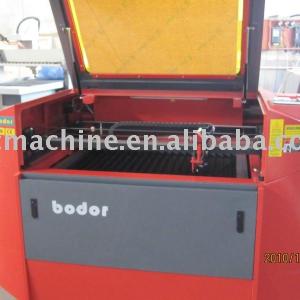

CO2 laser cutting machine
CO2 laser cutting machine, 1.ce from NOVA, 2.for Germent cutting, 3.for all kinds of non-metals - details see: https://www.machineto.com/co2-laser-cutting-machine-10265029
| Place of Origin:Shandong China (Mainland) | Brand Name:Bodor | Model Number:BCL0609N |
CO2 laser cutting machine
Product’s Description
Bdseries laser machine fully employ the movement controlling capacity to improve the effect of laser processing.
We always focus on the service tofield processing in all considerations of software,mechanicalstructure ,electric performance and accessory-choosing ,the stability,precision and speed of our products will conduct to be the first-calss standardunder any sound quality management system in any factory,
In order to meet the demands of large-area cutting in garment field,BD laser flat bed adopts the hardered stable underpan made of reinforced material,linear guides and precise gear driving system are used to assure the stability and precision .Open ,netty workbench made of stainless steel with high flatness is easy to operate and will never fray,the automatic feeding system is added to save time and cost reduction.
Specifications
model | BCL0609N | BCL1525 |
Working area | 600*900mm | 1500*2500mm |
Laser power | 80w/100w/130w | |
Laser type | Sealed co2laser tube ,water-cooling ,10.6um | |
Cooling type | Water cooling | |
Engrabing sacnning speed | 0—60000mm/min | |
Cutting speed | 0---30000mm/min | |
Laser output contol | 1---100% software setting | |
Smallest character engraving | Chinese 2.0mm*2.0mm english 1.0mm*1.0mm | |
Highest scanning precision | 2500DPI | |
Locating precision | ≤+0.01mm | |
Supported file format | DSP PLT BMP DXF AI | |
Compatible software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD sofeware in cloth | |
colorseparation | yes | |
Drive system | 3 phase stepper motor | |
power | AC110V-220V+10%,50HZ—60HZ | |
Packing size | 340cm*210cm*122cm(L*W*H) 138in*87in*48in | |
Net weight | 1400KG | |
| Packaging Detail:plywooden case |
| Delivery Detail:15 days after the payment |
