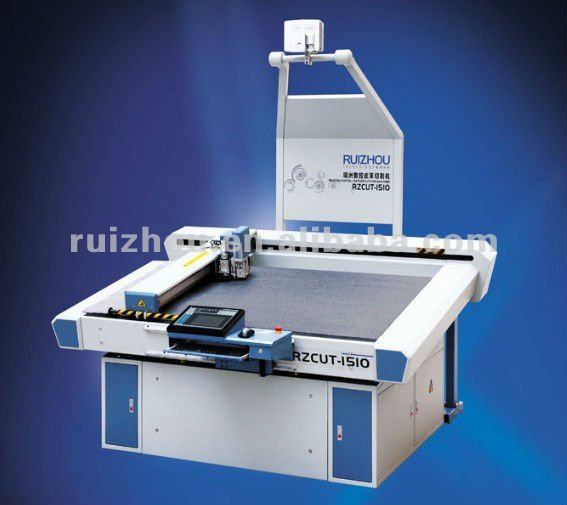

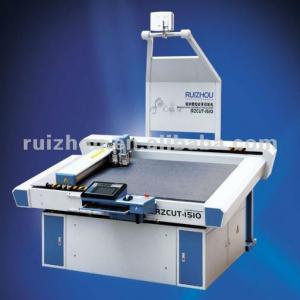

CNC Leather Cutting Machine

Reliable quality, accurate performance, powerful function, and affordable pric! Your first choice of digital cutting!! - details see: https://www.machineto.com/cnc-leather-cutting-machine-10265398
Place of Origin:Guangdong China (Mainland)Brand Name:RUIZHOUModel Number:RZCUT-1510Work Area:1500*1000mm
Cutting Speed:up to 1200mm/sApplicable Material:Natural leather, Synthetic leather,Cardboard, Insole board etc.Process Thickness:Up to 6 mm
CNC Leather Cutting Machine
contact supplier for CNC Leather Cutting Machine


RUIZHOU PROFILE:

1. 15 years of experience in CNC cutting technology;
2. The first and biggest CNC cutting machine manufacturer in China;
3. We only focus on the research and development of CNC knife-cutting technology and related CAD software over the past 15 years;
4. We use HAAS and DMG machine tool to process key components;
5. We imported Servo Motor from Panasonic and Straight-line guide rail from Germany;
6. We regard quality and service as the life of our corporation;
7. We will never be satisfied until you are satisfied;
8. Our engineering team never stop to improve our machine and upgrade our software;

BRIEF DESCRIPTION:

Reliable quality, accurate performance, powerful function, and affordable price. The most competitive leather cutting solution in the world!! And your first choice for leather goods production!!!

KEY FUNCTIONS

1. Multi-functional cutting tool, be able to do complete cutting, kiss cutting, and dot cutting;
2. Different shapes of cutting blades available for cutting a wide range of materials;
3. Powerful vacuum system;
4. Dual projection system with rapid calibration and control;
5. Material digitizing;
6. Interactive marking of flaws on leather sheet.
7. Interactive nesting for genuine leather and synthetics
8. Automatic nesting for genuine leather and synthetics
9.Cutting process parameterization and control;
10. Support for parts pick-up;
11. Statistics and reporting for the cutting process;

DISPLAY OF THE TOOL HEAD:

AVAILABLE TOOLS:

TECHNICAL SPECIFICATION:

Available Model

RZCUT-1510

RZCUT-1007

Work Area

2500mm*1000mm

3200mm*1200mm
Cutting Speed

Up to 1200 mm/s

Cutting Thickness

Up to 7 mm

Applicable Material

Natural Leather; Synthetic Material(PU; PVC;EVA;PE); Card board; Fiber board; Insole board; Rubber; etc.

Available Tools

1 Vibration Cutting Knife; 2 Punch Tools; 2 Marking Pens;

Hold-down Method

Vacuum System

Projection System

1 projector

Machine Language

HPGL/GPGL

Compatibility

Compatible with DXF/PLT file format.

DataPort

Standard Serial and Parallel Port

Driving Force

Panasonic Servo Motor

Transmission Device

Imported straight-line guide rail, Sync Belt, and

Mechanical Resolution

0.01mm

Reproductive Accuracy

Less than 0.1 mm

Power Consumption

5.5 KW

3.8KW

Nominal Voltage

380V±10%;50/60HZ

Taking Space2.10m*2.40m*3.0m

1.60m*1.80.0m*2.50m

Packing Dimension2.80m*2.20m*1.84m

2.40*1.60*1.84 m

Net Weight850KG

500KG

Gross Weight1200 KG

800KG

Remark:We reserve the right to improve or upgrade the design or our machine without prior notice;

WHAT ARE THE BENEFITS:

Time Savings
An hour of work with our cutting system can replace between 4 and 6 hours of hand-cutting. In addition, you don't have to waste time searching for the right pattern, since they are all digitally organized. Cutting, marking and punching are accomplished in minutes, not hours and days by hand!
Material Savings
Companies report a material savings of 5-10%. How? You can nest patterns on your computer with a bird's eye view of all the patterns and experiment with different arrangements until you find the tightest nesting fit. Nesting can also be done automatically for even more time savings.
Accuracy
Improved accuracy begins with the ability to create perfect patterns. Patterns are then cut with a precision of half a millimeter. What will be the result? Sewers are provided with pieces that fit. They can produce a higher quality finished product in much less time.
Inventory Reduction
Our cutting system allows you to minimize cut inventory levels. Single or low ply cutters can quickly cut just what is needed for that day's production. This translates into a quick response time and minimum cut inventory.
Organization
Automation will have a huge impact on your company's organization. The computer, with back-ups, allows for secure pattern storage and quick retrieval. Revisions can be done in minutes. Patterns don't get lost or worn out, and special markings never become difficult, or even impossible, to read.
Error Elimination
Consistently accurate cut pieces will mean no time wasted correcting mistakes.
Employee Satisfaction
Pattern-makers appreciate the ease of input, design, and pattern modification. Cutters will enjoy a cleaner, safer work environment. Sewers appreciate the accurate, consistent patterns. No more stretching or squeezing to make corners meet!

WHAT ARE THE FEATURES

Simplicity of Design
1. We design with a minimum number of moving parts because moving parts tend to wear out over time;
2.Direct drive motors with rack and pinion provide for easy maintenance and maximum effectiveness;
3. Our smooth cutting motion reduces stress on a machine. Compare us to the competition. You can see and hear the difference!
4. We minimize hand-wiring and use more reliable pc boards whenever possible.
5. Modular design enhances reliability and makes systems upgradeable.
Optimum Strength to Weight Ratio
1.Weight is your reliability enemy, so we design high-strength, light-weight components. This reduces the forces on the system to a minimum, resulting in far less wear and much greater reliability. Light-weight equipment is simply a better solution.
2.We were first in the industry to build aluminium alloy gantries. They create the lightest possible system while maintaining strength that is stronger than steel. We achieve heavy duty performance, without the heavy weight that destroys machinery. This translates into durability.
Easy Maintenance
1. Wherever possible, we avoid components that need lubrication, in favor of rugged, low-wear alternatives.
2. Our designs are simple enough for you to service and maintain yourself. It usually doesn't take a technician to service the system.
3. With standard maintenance, you can expect years of trouble-free use.

APPLICATIONS:

SAMPLE DISPLAY

CNC Leather Cutting Machine
Packaging Detail:In wooden case
Delivery Detail:within 30 days against payment
