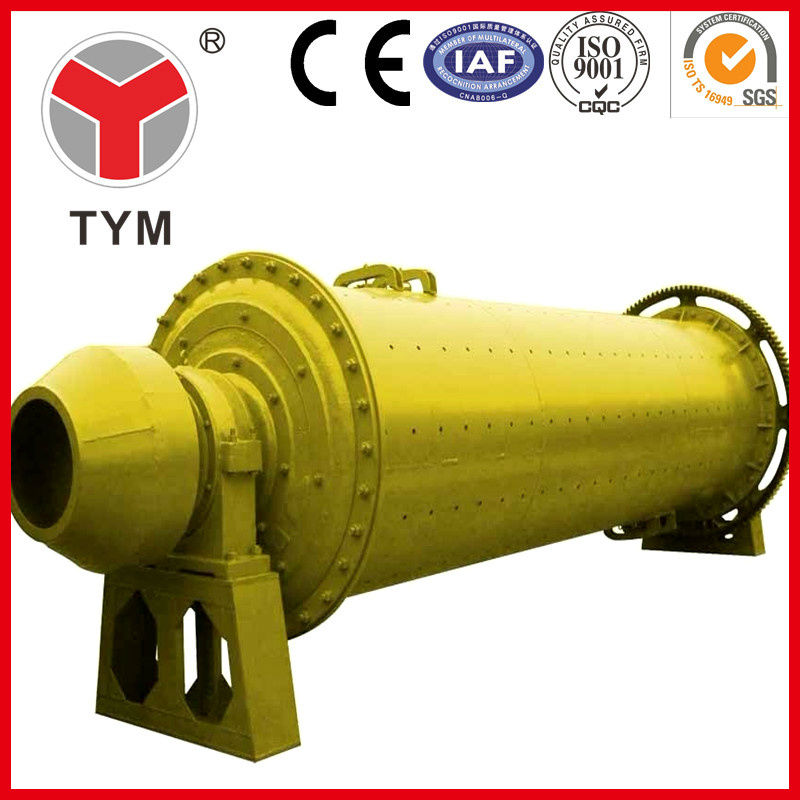

China Zhengzhou reputed manufacturer supply small cement ball mill
Condition:New | Type:Ball Mill | Motor Type:AC Motor | Power(W):18000-800000 |
Capacity(t/h):0.65-80 t/h | Place of Origin:Henan China (Mainland) | Brand Name:TYM | Model Number:in details |
Dimension(L*W*H):refer to the datas below | Weight:4.6-137t | Certification:ISO,CE,SGS | Warranty:12 months |
After-sales Service Provided:Engineers available to service machinery overseas | Color:white,blue,red,or as your requirement | Motor power(kw):18.5-430 | Feeding size:<20-25mm |
Discharging size:0.075-0.4mm | Shell rotation speed(r/min):36-38 | After-sale services:Installment,technical support,repairment | Spare parts:steel ball,scaleboard,can be free |
Installation:under our technical guidance | Market:Africa,Europe,Asia,Egypt | Factory visit:Welcomed |
reliable manufacturer for ball mill
♥Application ofball mill:
ball millis the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
1) An efficient tool for grinding many materials into fine powder.
2) The ball mill/ fertilizer balls is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill/ fertilizer balls is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill/ fertilizer balls can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill/ fertilizer balls , the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill/ fertilizer balls runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills/ fertilizer balls have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
♥Working principle of ball mill
This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
♥Technical Data ofball mill
♥Structural characteristics ofball mill:
The ball mill is composed by feeding part, discharging part, turning part and driving part(reducer, small driving gear, electric motor and electric control).The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice
♥Spare parts ofball mill
♥Some production flow ofball mill
♥Packing & Transportation
♥Some coners of our factory
♥Our honour
♥The international cooperation and negotiation
♥Contact me
♥About us
Zhengzhou General Mining Machinery Co.,Ltdwas founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.
What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.
Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.
They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001:2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.
Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you. Thank you.
Pre-sale services:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program
Sales tracking:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
We hope our perfect products and service can satisfy you,and welcome to our factory to visit . Looking forward to building long-term relationship with you !
Packaging Detail:20GP, 40GP Container, International packaging standard, as customer's requirement. |
Delivery Detail:15days after receiving the deposit |
