1.Utrafine pulverizer with ISO/SGS approved, 2.Particle size form 600~1500 mesh, 3.Patent no: ZL2011201414398 - details see: https://www.machineto.com/china-micronizer-machine-sale-for-high-grade-powder-10314131

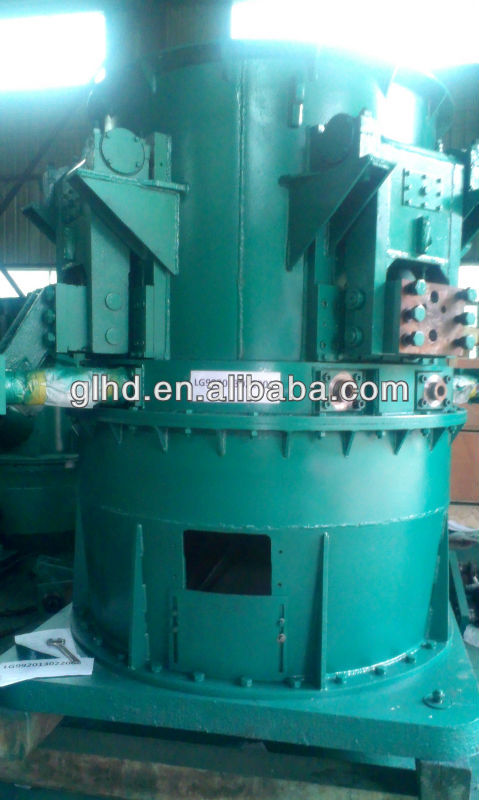

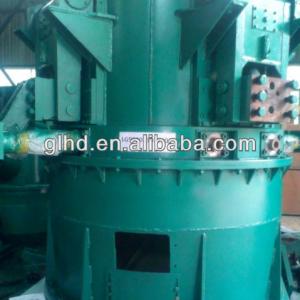

The advantage of High capacity with 10-20 micron Ultrafine pulverizer

1.Unique way of grinding:Roller keep stationary,Parallel suspension in ring internal. tray rotates with ring.The material being thrown around the ring under the action of centrifugal force, be into between roller and ring by shovel knife. Roller rotate with material, The material being grinded through two pieces high pressure spring force of the roller and ring gap.

2. Powder iron content is low, keep the original material of colour and luster: Material in the grinding process not adhesion to roller and ring, and keep the original color.

3. Maintenance cost is low: The main wearing parts including roller, ring, shovel knife, the maintenance cost is lower than Raymond mill.

4. Grinding ability: Roller Channal grinding force from two pieces spring stretch,about 4000KG

5.Output mesh:600-1500mesh

6. The operation is simple, easy maintenance

Main technical parameters: (Four rolls) of High capacity with 10-20 micron Ultrafine pulverizer

Maximum feeding size	Finished granularity	output (According to different materials fineness)	Center shaft speed	Grinding ring inside diameter	Roll grinding size (diameterXheight)	Total weight	Host motor power	Total power
10 mm	600~2000 mesh	1000~3000 kg/h	116 r/min	φ1250 mm	φ365X200mm	28 t	55 KW	133.5 KW

Working Principles of High capacity with 10-20 micron Ultrafine pulverizer

Production Process of High capacity with 10-20 micron Utrafine pulverizer

ABOUT US

Guilin Hengda Mining Machinery Co., Ltd. is a reputed manufacturer engaged in raymond mill,superfine mill, vertical mill for high grade powder and export of powder making machinery in China . We hold the best engineers to do R&D and launched 1~2 new product every year.

Product is the way of life at hengda mill, the company has grown to become a reputed manufacturer for raymond mill.

More than 10 patents products, won the title of China's high-tech enterprise.

We have provided the worldwide with raymond mill of decent quality at the most competitive prices. Our continuous efforts have earned recognition from our customers in the powder Industry. Here all hengda mill are designed ,produced, assembled and texted according to the ISO9001:2008 and SGS.
