1.professional manufacturer with 50 years, 2.high efficiency&capacity,long service life, 3.30%low power consumption, 4.customize - details see: https://www.machineto.com/china-leading-ball-mill-machine-with-reliable-quality-10314494

Introduction:

Slag Mill adopts high fine sieve grinding technology, special double layer diaphragm device, activation liner, kiln outlet discharging device and mini-type grinding media, so it can grinds slag with high efficiency to achieve a higher production with lower power consumption. The performance has reached the advanced international level. And, the slag mill is easy to maintain and the wear parts are easy to change.

Technical parametrs:

Model	Rotation speed of shell(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Motor power(KW)
Φ900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	6.8
Φ1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	12
Φ1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	13.2
Φ1500×4500	27	11	≤25	0.074-0.4	3-6	21
Φ1500×5700	28	12	≤25	0.074-0.4	3.5-6	24.7
Φ1830×3000	25.4	11	≤25	0.074-0.4	4-10	34.5
Φ1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	46
Φ1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	49
Φ2100×4500	23.7	24	≤25	0.074-0.4	8-43	59
Φ2100×7000	23.7	26	≤25	0.074-0.4	8-48	67.5
Φ2200×4500	21.5	27	≤25	0.074-0.4	9-45	58
Φ2200×6500	21.7	35	≤25	0.074-0.4	14-26	63
Φ2200×7500	21.7	35	≤25	0.074-0.4	15-30	66.5
Φ2400×3000	21	23	≤25	0.074-0.4	7-50	65
Φ2400×4500	21	30	≤25	0.074-0.4	8.5-60	70
Φ2700×4000	20.7	40	≤25	0.074-0.4	12-80	92
Φ3200×4500	18	65	≤25	0.074-0.4	Determined by the technological process	137
Φ3600×4500	17	90	≤25	0.074-0.4	Determined by the technological process	158
Φ3600×6000	17	110	≤25	0.074-0.4	Determined by the technological process	175

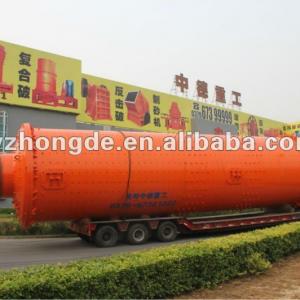

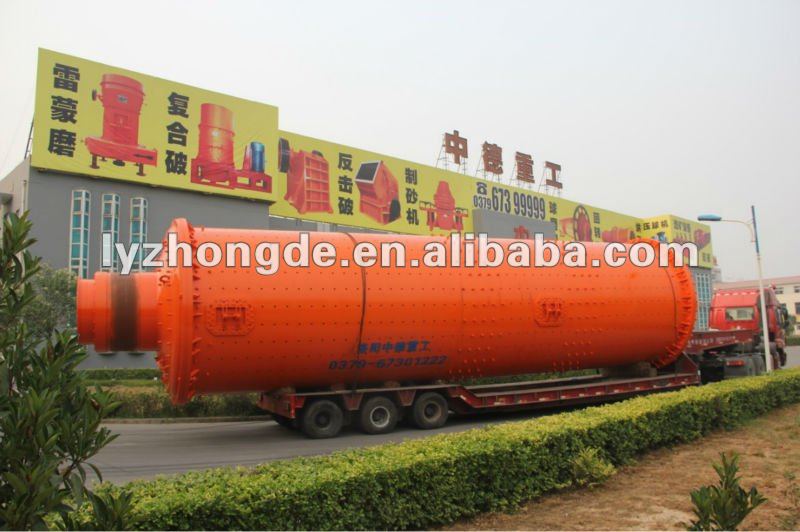

pictures for reference:

manufacturing process:
