1. economic, 2. stable working, 3. cut thoroughly, 4. easy operation - details see: https://www.machineto.com/china-cutting-machine-supplier-for-fiber-waste-recycling-10279717

Application:

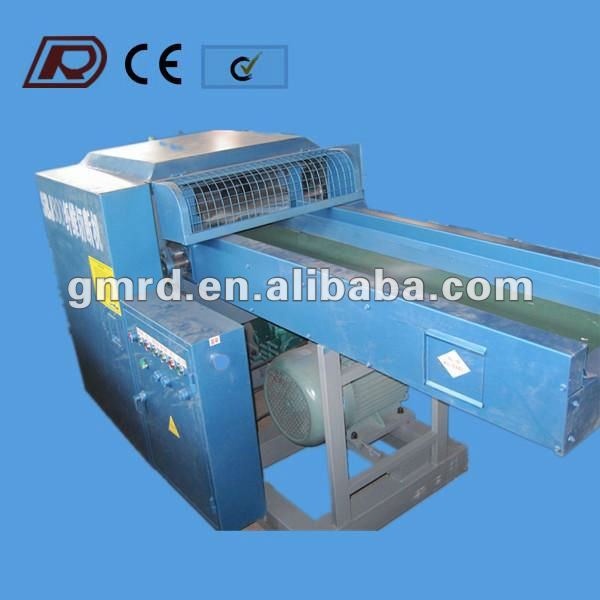

Fibre Cutting Machine cut the fibre into piece in order to recacly the material

Character:

1. This model has one fix blade and two moving blades .

2. With the help of high rotation of moving blades roll, when they pass the fixed blade ,the raw material will be cut into small pcs .

3. The cut material length is adjustable from 5 cm-20 cm by changing the rotation speed of blade roll.

4. The machinery is made and designed on the base of the better character and advanced experience of the similar product domestic and abroad.

5. In addition, it can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and the safe production and so on

Main Technical Data:

Model	GM500A	GM500B	GM800A	GM800B		GM800C	GM800D	GM1200A	GM1200B
Motor	3 kw	3 kw	3 kw	4.5 kw		5.5 kw	7 kw	9 kw	9 kw
Size(m)	1.8*1.0*1.1	3.2*1.0*1.1	3.2*1.0*1.1				6.0*1.0*1.1	6.0*1.4*1.2
Capacity	300 kg/h		500 kg/h		800 kg/h			1000-1500 kg/h
Cutting frequency	288 time / min				432 /min		1036 time/min	777 time/min	1036 time/min
Cutting size	5-300 mm (fixed measure per time)		5-150mm ( 3 size permited per time )
Rotary Cutter quantity	2 pieces			2 pcs	2-3 pcs		4 pcs	6 pcs	8 pcs
Feeding Belt	1000*350mm		1400*350 mm				2800*350 mm	2800*700 mm
Out-put Belt	No	1400*350mm	1400*350 mm				2800*350 mm	2800*700 mm
Cutting thickness	20 mm		30mm	30-50 mm				30-60 mm
