cement,stone Energy Saving Ball Mill welcomed in Asia,Africa and Middle East

mine equipment:, 1.used in mining industry, 2.low consumption,high capacity per hour, 3.OEM is acceptable, 4.ISO9001, CCC - details see: https://www.machineto.com/cement-stone-energy-saving-ball-mill-welcomed-in-asia-africa-and-middle-east-10314732
Condition:NewType:Ball Mill,Energy-Saving Ball MillCapacity(t/h):0.7-90t/hPlace of Origin:Henan China (Mainland)
Brand Name:BAILINGModel Number:BLCertificate:ISO9001, CCCColor:as your requirment
Motor:Chinese famous brand or as your requestAfter-sale service:for the whole using yearInstallation:guidance by supervisory level technicianApplication:grinding clinker fireproof stuff,etc.
Output size(mm):0.074-0.4mmPackage:export standardDelivery time:as require
cement,stone Energy Saving Ball Mill welcomed in Asia,Africa and Middle East
contact supplier for cement,stone Energy Saving Ball Mill welcomed in Asia,Africa and Middle East


mine equipment:

ball millis a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Our ball mills can satisfy different requirement, and have good features such as low consumption, high capacity per hour, no pollution to the enviroment around, easy to be repaired.

We have the good service to our customers, if they can't install the machines, we can send our technician come to your location, and install for you. We make every endeavor to satisfy our customers.
Working Principle:

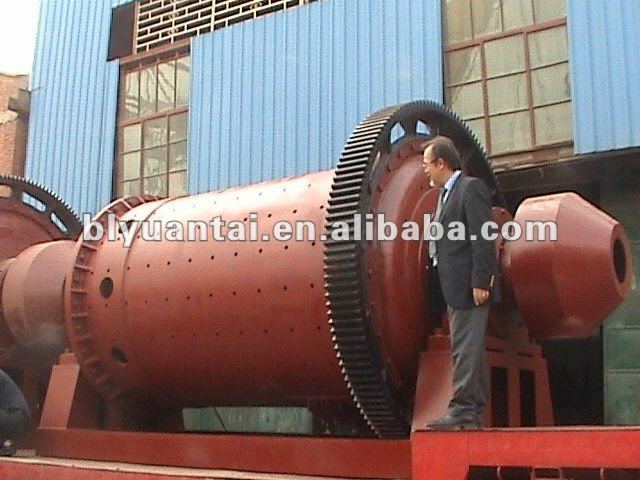

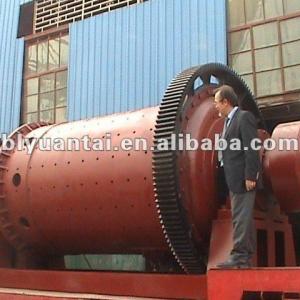

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

ModelSpeed of bucket (r/min)Weight of ball (t)Size of feed opening (mm)Size of output size (mm)Production (t/h)Power (kw)Weight (t)
φ900*1800381.5≤200.075-0.890.65-218.53.6
φ900*3000382.7≤200.075-0.891.1-3.5224.6
φ1200*2400323.8≤250.075-0.61.5-4.84512.5
φ1200*3000325≤250.074-0.41.6-54512.8
φ1200*4500327≤250.074-0.41.6-5.85513.8
φ1500*3000278≤250.074-0.42-59017
φ1500*45002714≤250.074-0.43-611021
φ1500*57002715≤250.074-0.43.5-61322407
φ1830*30002411≤250.074-0.44-1018028
φ1830*64002423≤250.074-0.46.5-1521034
φ1830*70002425≤250.074-0.47.5-1724536
φ2200*55002130≤250.074-0.410-2237048.5
φ2200*65002130≤250.074-0.414-2638052.8
φ2200*75002133≤250.074-0.416-2947556
φ2400*300020.615.5-15.6≤250.074-0.415-55
φ2400*45002130≤250.074-0.415-60
φ2700*400020.640≤250.074-0.420-80
φ2700*450020.748≤250.074-0.420-90
φ3200*45001865≤250.074-0.4According to different tech

steel ball in ball mill

simple flow chart

certifications :

cement,stone Energy Saving Ball Mill welcomed in Asia,Africa and Middle East
Packaging Detail:Standard Export package , main machine in nude, spareparta and motors in wooden cases
Delivery Detail:Within 30 working days after order placed
