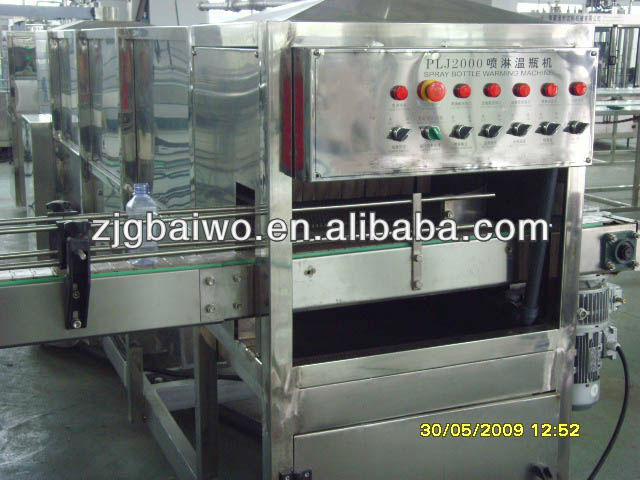

bottle warmer machine

1.bottle warmer machine, 2.for bottle warming after carbonated drink filling, 3.capacity: 3000-20000BPH, 4.Easy operation - details see: //www.machineto.com/bottle-warmer-machine-10047764
Condition:NewPlace of Origin:Jiangsu China (Mainland)Brand Name:BIEVOModel Number:PLJ
Usage:carbonated drinkCertification:CE,ISOWarranty:12 mothsAfter-sales Service Provided:Engineers available to service machinery overseas
material:304 stainless steelcolor:silver grey
bottle warmer machine
contact supplier for bottle warmer machine


bottle warmer machine

1.bottle warmer machine
2.for bottle warming after carbonated drink filling
3.capacity: 3000-20000BPH
4.Easy operation

This machine is usually used after carbonated beverage finished cold filling and sealing, when enter the spray tunnel, the water with the function of high-pressure pump, uniformly spray on the bottle body. The bottles move slowly in the chain, when they are out the tunnel, they can reach the normal temperature, then achieve the purpose of warming. This machine can also be used for secondary sterilization for fruit juice and beer.

  • Main Technical parameters
ModelWP-PLJ-4000WP-PLJ-6000WP-PLJ-10000
Capacity(b/h)2000-40004000-60008000-10000
Bottle inlet temp.

3-5

Bottle outlet temp.

<45

Steam pressure

0.5-0.6MPa saturated steam

Width of belt(m)1.221.52
Circling water(m3/h)6.31020

Water consumption(m3/h)

11.52

Water pressure:>=0.2Mpa,water temp. is 20°C

kg/h steam consumption200350600
Overall dimension(mm)8000×1500×16508000×1800×16508000×2200×1650
Total weight(kg)320050006200
Packaging Detail:wooden case
Delivery Detail:30 days
