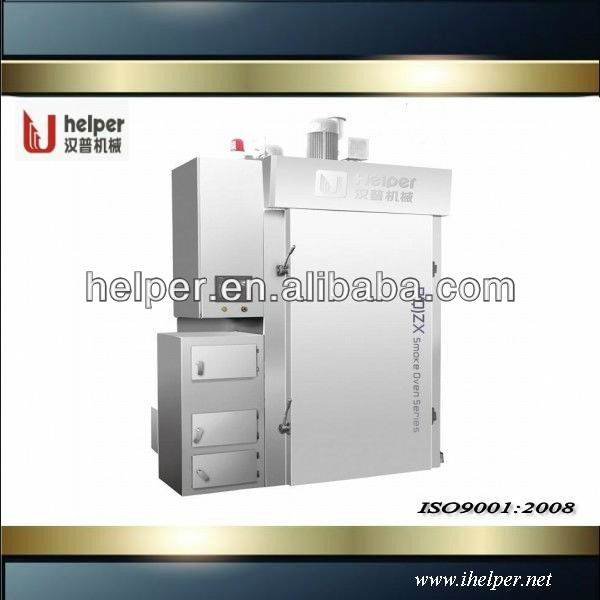

Automatic sausage smokehouse

Smoke house functions:, 1.boiling, drying, dampen drying,, 2.roasting, smoking, ventilating and cleaning etc. - details see: //www.machineto.com/automatic-sausage-smokehouse-10046242
Condition:NewType:Sausage,Meat Processing MachineryApplication:cookingAutomatic Grade:Automatic
Production Capacity:500kg/ovenPlace of Origin:Hebei China (Mainland)Brand Name:helperModel Number:QZX-500
Voltage:220V/380V/415V/460VCertification:ISOWarranty:One yearAfter-sales Service Provided:Engineers available to service machinery overseas
Processing:SterilizerProcessing Types:sausage and meat
Automatic sausage smokehouse
contact supplier for Automatic sausage smokehouse


Automatic sausage somkehouse

Smoke oven is one of the absolutely necessary equipments in the process of making meat products.

This machine has such functions as boiling, drying, dampen drying, roasting, smoking, ventilating and cleaning etc. With the experience of decade development and careful consideration of the clients' requirement and market feedback, the product is given reasonable improvement, which has perfected the heating rate and fume smoking effect.

The interlayer of the main machine frame is filled with imported high temperature resistant polyurethane frothing material which is able to guarantee good heat preservation, airtightness, energy saving and high efficiency.

Key electric components of automatic smoke oven such as touch screen, programmable controller, relay and electromagnetic valve etc are all used imported products. Large man-machine interface visually shows the equipment operation and is easy at any time in the running to adjust the operation parameters such as time, temperature, humidity and ventilation etc.

With excellent fuming and circulating system, the smoke in the oven can be evenly distributed to make meat products uniform color and a higher yield rate.

Technical data

ModelProductivityPowerHigh steam pressureLow steam pressureTempreture(High pressuree)Tempreture(low pressure)Trolley(mm)WeightDimension(mm)
QZX500500kg13.32kw0.3-0.6 mpa0.05-0.15 mpa<85°c<100°c100*960*18604200kg1475*2235*2500
ModelProductivityPowerHigh steam pressureLow steam pressureTempreture(High pressuree)Tempreture(low pressure)Trolley(mm)WeightDimension(mm)
QZX250250kg9.32kw0.3-0.6 mpa0.05-0.15 mpa<85°c<100°c100*960*1860180000kg1475*1140*2500

Details

ModelProductivityPowerHigh steam pressureLow steam pressureTempreture(High pressuree)Tempreture(low pressure)Trolley(mm)WeightDimension(mm)
QZX10001000kg13.32kw0.3-0.6 mpa0.05-0.15 mpa<85°c<100°c100*960*18604200kg1475*4340*2500
ModelProductivityPowerHigh steam pressureLow steam pressureTempreture(High pressuree)Tempreture(low pressure)Trolley(mm)WeightDimension(mm)
BZX500500kg13.32kw0.3-0.6 mpa0.05-0.15 mpa<85°c<100°c100*960*18602500kg1475*2235*250
Hang bowel car
alarm
smoke mouth
furnace wire
tempreture probe
water outlet
Our factory appearanceWorkshop
Our teamShowroom
Packaging Detail:package in wooden case
Delivery Detail:30 working days after receive your payment
