Automatic Girth Welder

automatic girth welder,automatic tank welding machine, for girth seam welding.It is suitable for oil tank, storage tank welding. - details see: https://www.machineto.com/automatic-girth-welder-10137410
Type:OtherPlace of Origin:Jiangsu China (Mainland)Brand Name:Pyramid
Automatic Girth Welder
contact supplier for Automatic Girth Welder

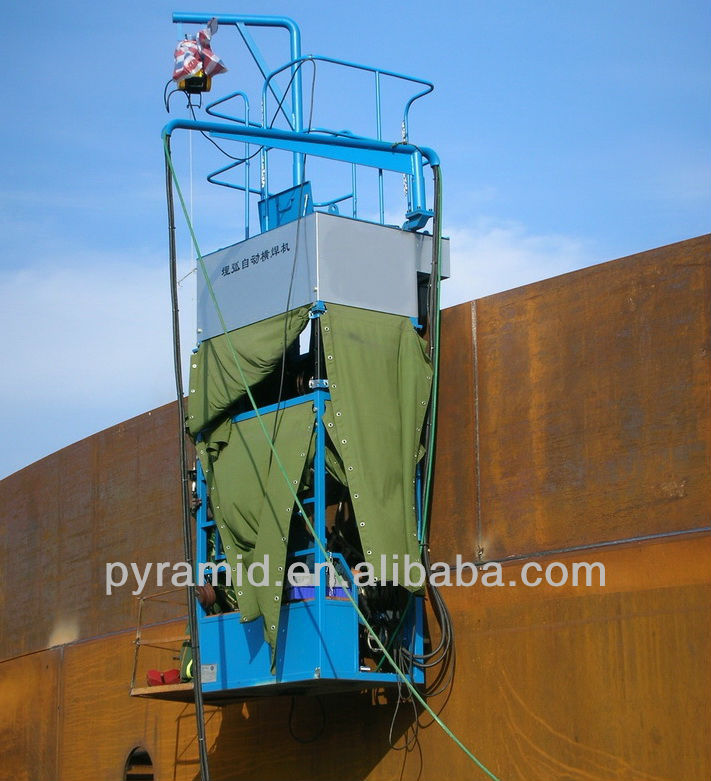

Automatic girth welder, or can be called automatic tank welding machine, it take the construction eneironment into consideration, and equip USA Miller welding power,which can work under severe atmosphere, so as to keep the stability of welding. In design, we considered the welding requirements of possible large tank.so this machine can be upgraded by performed relative connnection,so it can enlarge equipment welding size and avoid overlaping investments.it can realize automatic welding for all girth seam and improve construction effeciency.It also have advantage of high operating factors.

ModelHFHJ-1HFHJ-2
DetailSingle side weldingDouble side welding
Traveling speed100-3000mm/min100-3000mm/min
Height Range1500-3500mm1500-3500mm
Plate thickness8-50mm8-50mm
Min.dia of tank4500mm4500mm
Power6kw12kw
Weight2 tons4.2tons
Length1500mm3200mm
Width1300mm1300mm
Height3000mm3000mm
Automatic Girth Welder
Packaging Detail:Wooden box package..Free of fumigation.
Delivery Detail:25 days after 30%advanced payment or L/C at sight.
