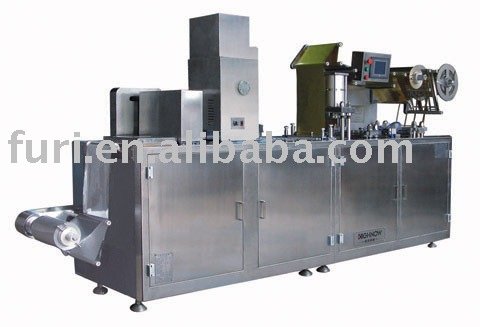

Alu/Alu Blister Packing Machine

The DPP-250E alu/alu blister packing machine adopts the internationally popular composite aluminum film with such performances. - details see: https://www.machineto.com/alu-alu-blister-packing-machine-10053685

Automatic Grade:Automatic	Place of Origin:Jiangsu China (Mainland)	Brand Name:FURI	Model Number:DPP-250E
Usage:Outer	Type:General,Packing Machine,Blister Packaging Machine

contact supplier for Alu/Alu Blister Packing Machine

Product explanation

The DPP-250E machine adopts the internationally popular composite aluminum film with such performances of good seal, moisture proof and light proof as forming material. It can cold punch stiff and uniform blister through special forming mould. And it can produce beautiful packing products through such stations as professional feeding system, detecting heat-sealing, batch No. printing, line-cutting, blanking, wasted plate automatic rejecting, waster automatic recovery finished product conveying etc.

Main characteristics:
1. Cold punching forming moulds makes blister stiff and uniform;
2. Human-machine interface, PLC control, variable frequency stepless speed regulating;
3. Professional feeder, adopting feeding method of multi-stage vibration, pipeline baiting, register and position-checking;
4. Automatically detect missing tablets (pellets), and automatically reject waste plate;
5. Can be equipped with cursor GC register device;
6. With cylinder heat-sealing, the upper and nether checkers ensure the effect of heat-sealing, and waster automatically recovering device.

Technical parameter

Blanking frequency		15-25 times/min
Blanking plate		4 plates/time
Adjustable scope of travel		30-120mm
Output		3600-6000 plates/hour
Max forming area and depth		240×110×12mm
Specification of packing material	Composite Al film	250×0.15mm
	Heat-sealing Al foil (PTP)	250×0.02mm
Air compressor		≥0.22m³/min (self-prepared)
Pressure		0.5-0.7Mpa
Dimension		2800×800×1900mm
Weight		1500kg
