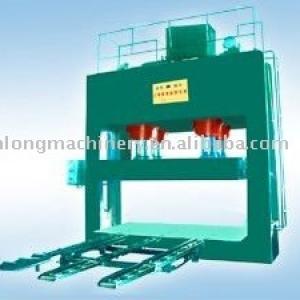

500t cold pre press

pre press, 1.HIgh quality, 2.Good service, 3.competitive price, 4.ISO9001 certification - details see: https://www.machineto.com/500t-cold-pre-press-10346488
Condition:NewType:Cold PressPlace of Origin:Shandong China (Mainland)Brand Name:Jianlong
Model Number:BY814*8/5-HZmodlel:various
500t cold pre press
contact supplier for 500t cold pre press


ModelBY814*8/5-HZ
Normal gross pressure500T
Direction of feefing plateHorizontal
Opening1500mm
Dimension of workingbench2700*1380mm
Diameter of cylinder360mm
Numbers of cylinder2pcs
Pressurization≤26.5mpa
Stroke of cylinder1000mm
PositionUp
Promote the diameter of the jar80mm
Numbers of the jar2pcs
Pressurization≤16mpa
Stroke of cylinder1000mm
PositionBottom
Producing area of the cylinderShanghai
Pressure of unit plate blank15.3kgf/cm²
Dimensions of the board2560*1280mm
The flow of the post pumpAbout 14L/min
Allowed pressure≤26mpa
Power of the post pump7.5kw
Send the power of the motor2.2kw
Send the speed6m/min
Net weight20000kg
Overall dimensions1400*3400*4650mm
Control methodAutomatic pump station
Thickness of upper and lower crossbeams900mm
Width of upright column300mm
Thickness of steel plate40mm
Thickness of active crossbeam300mm
Thickness of steel plate3520mm

500t cold pre press
Packaging Detail:as your requirements
Delivery Detail:20days after the order
