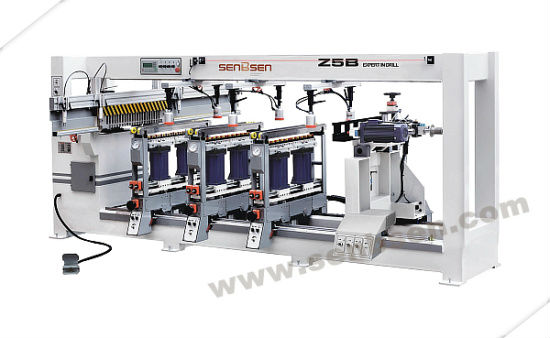

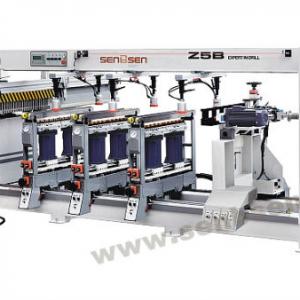

5 ranged double motors drilling machine
5 ranged double motors drilling machine, equiped with double working motors, superior steel materials, stable function - details see: https://www.machineto.com/5-ranged-double-motors-drilling-machine-10349063
| Condition:New | CNC or Not:Normal | Motor Type:5 poles | Spindle Speed:2840r/min,2840rpm |
| Place of Origin:Guangdong China (Mainland) | Brand Name:Senbsen | Model Number:MZ5B | Voltage:380V,380V,3phase,50hz |
| Power(W):9.6kw | Weight:2300kg | Dimension(L*W*H):3800*2500*1630mm | Certification:ccc |
| Warranty:one year | After-sales Service Provided:Engineers available to service machinery overseas | base:cast iron | electricity:overload protecting |
| type:automatic | control drilling head:pneumatic | drilling head:22*2+11*6=110 | color:grey or customized |
| Drilling Direction:Horizontal and vertical | Safety:Urgently Stop Button |
5 ranged double motors drilling machineis used for mortising of solid wood, flakeboard, medium density fiberboard.
1.The imported original drill row, famous and superior original electric appliance.
2. The machine tool elements choose the superior steel materials. They have been heat-treated with high intensity and eternal non-deformation.
3. The kinetic components choose the high-grade anti-wear materials with fine durability.
4. Size positioning, prompt; accurate and convenient operation
| Product Name | 5 ranged double motors drilling machine |
| Model | Z5B |
| Max. drilling diameter | 35mm(single spindle) 13mm(multi spindles) |
| Max. drilling depth | 60mm |
| Total numbers of drilling spindles | 22*2+11*6=110 |
| Installationpitch of drilling head | 10mm |
| Max. processing size | 2700*670mm |
| Min. processing size | 250*32mm |
| Spindle speed | 2840r/min |
| Total motor power | 9.6kw |
| Overall size | 3800*2500*1630mm |
| N/W | 2300kg |
| Packaging Detail:Wooden case or other requested packing |
| Delivery Detail:15 days |
