400T 12 oenings hot press,plywood hot press,woodworkingmachinery,plywood working machine

1.It is siample,easy to operate., 2.It has a high quality and low price.And aslo has the stable performance and high efficiency. - details see: https://www.machineto.com/400t-12-oenings-hot-press-plywood-hot-press-woodworkingmachinery-plywood-working-machine-10343998

Type:Hot Press Machine	Place of Origin:Shandong China (Mainland)	Brand Name:Tianhe	Model Number:TH-412P
DIMENSION:356013704200mm

400T 12 oenings hot press,plywood hot press,woodworkingmachinery,plywood working machine

contact supplier for 400T 12 oenings hot press,plywood hot press,woodworkingmachinery,plywood working machine

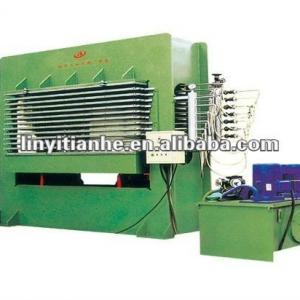

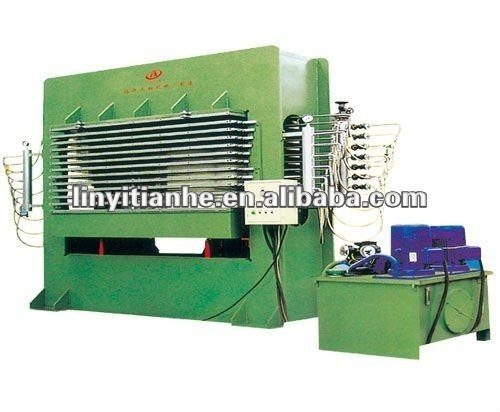

400 T 12 openings hot press

Major Component	Parameters
Quantity and Diameter of Cylinder	2*Φ320
Stroke of Cylinder	1050mm
No-load closing time	about 35 s
Hydraulic system	Auto/Semi auto
Hydraulic system compression resistance	25MPa
Main motor	11KW
Pressurized moto	5.5KW
Main pump	Shanghai Aviation 280 pump
Pressurized pump	10ml/rev plunger pump
Integral quality drilling board	2700×1370×42mm
Separation between layers	85mm
Width of plate main frame	35,22,10mm
Dimensions of Main frame	356013704200mm

It is the production of multilayer plywood, particle board, all kinds of density of fiberboard main pressing equipment

Packaging Detail:need no packing

Delivery Detail:20 days after your advance payment
