304 stainless steel water tank, 1.High quality, 2.Weight light and easy to install, 3.Anti-erosion and long life, 4.Safety u - details see: https://www.machineto.com/304-stainless-steel-water-tank-exported-10282609

Introduction :

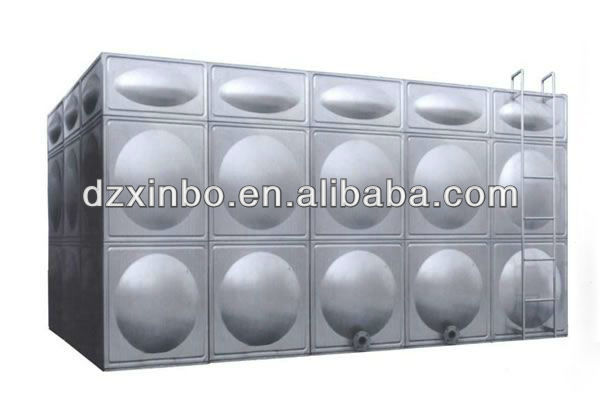

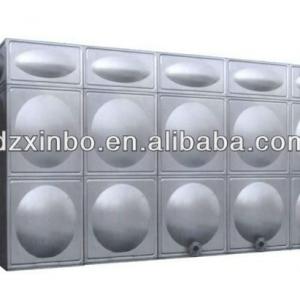

304 stainless steel water tank

Select the imported food grade stainless steel plate SUS thoroughly avoid the sunlight, do not breed it keeps clean at all times to maintain the water quality
the company has the special panel, the difficult stamping forming process to achieve a minimum of material consumption in the use of high-strength requirements, the weight of steel tanks is only one-third of the ordinary water tank , although the selection of high quality stainless steel panel , the price of ordinary carbon steel plate is almost close to the carbon water tanks.

Specification :

Stainless Steel Water Tank Specification
Item	Capability Cubic Meters	Specification(mm)			Thickness
		Length	Width	Height	Top Board	Side 1	Side 2	Side 3	Side 4	Bottom Board
1	1	1000	1000	1000	1	1.5				1.5
2	2	1000	2000	1000	1	1.5				1.5
3	6	2000	2000	1500	1	1.5	1.5			2
4	9	3000	2000	1500	1	1.5	1.5			2
5	16	4000	2000	2000	1	2	1.5			2
6	20	2000	5000	2000	1	2	1.5			2
7	24	3000	4000	2000	1	2	1.5			2
8	20	4000	2000	2500	1	2	1.5	1.5		2
9	50	5000	4000	2500	1	2	1.5	1.5		2
10	60	5000	4000	3000	1	2.5	2	1.5		2.5
11	90	6000	5000	3000	1	2.5	2	1.5		2.5
12	105	7000	5000	3000	1	2.5	2	1.5		2.5
Pay attention :we adopt the material of 304.
