HAND HELD CAPSULE FILLING MACHINE, it is manual capsule filling machine with output of maximum 8000 capsules per hour - details see: https://www.machineto.com/300-hole-hand-capsule-filling-machine-10306147

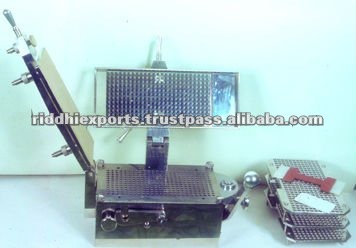

HAND HELD CAPSULE FILLING MACHINE

Manual Capsule Filling Machine

Manual capsule filling machine is designed for filling powder, granules & pellets into hard gelatin capsule. The machine is ideally suitable for all classes of pharmaceutical companies, R & D Laboratories. It is simple to operate with no variation, can be handled by unskilled labor and trouble free services year after Years.

Model:
RDCF 300/200/100 holes GMP: Complete body & all parts made of S. S.304/316 quality material. RDCF 300/200/100 holes STD: Body made of mild steel with hard chrome plating and all contact parts made of S. S. 304/316 quality material.

Interchangeability.
The machine is manufactured to suit the following capsule size 00 / 0 / 1 / 2 or 3 / 4 /or 5. The machine is supplied with any one size of capsule change parts.

Option
You have the option of Automatic Capsule Loader Machine which increase the production on one hand and reduce the number of operator on the other hand.

Salient Features.
Study & easily movable Easy to operated Can be dismantled and reassembled even by unskilled person. All contact parts in SS 304/SS316 quality. Excellent cost Benefit ratio.

Optional Accessories.
1) Capsule size “000” & elongated size Machine available. 2) Tablet filling attachment.

Output
RDCE 300 HOLES - 8000 CAPSULS PER HOUR DEPENDING ON PRODUCT

RDCE 200 HOLES - 4000 CAPSULS PER HOUR DEPENDING ON PRODUCT

RDCE 100 HOLES -2000 CAPSULS PER HOUR DEPENDING ON PRODUCT

Dimension
RDCF 300 HOLES : 405 X 300 X 455 MM, 42 KGS

RDCF 200 HOLES : 365 X 270X 380 MM, 26 KGS

RDCF 100 HOLES : 255 X 205X 355 MM, 18 KGS
