Silica Sand Grinding Mill:, 1. For cement, silicate, gypsum, limestone etc., 2. Wet or dry ball mill;, 3. Energy saving - details see: https://www.machineto.com/2013-hot-sale-silica-sand-grinding-mill-10314298

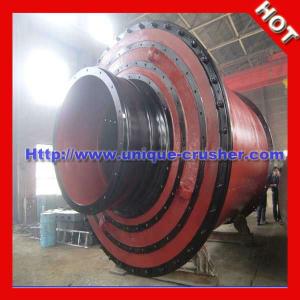

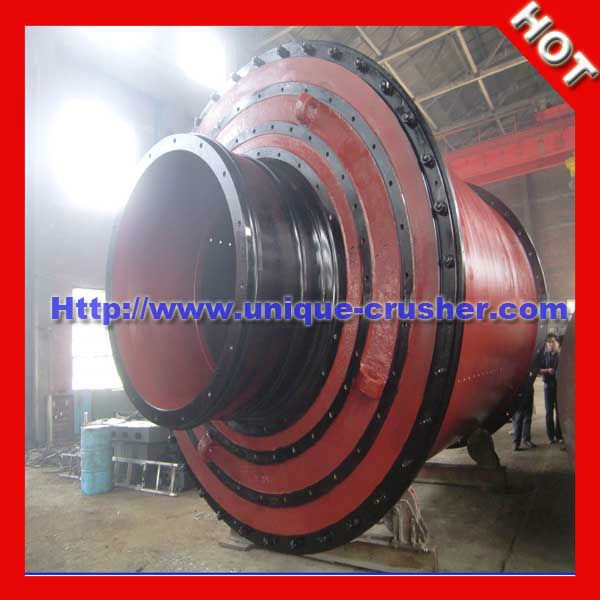

2013 HOT SALE Silica Sand Grinding Mill

Working Principle ofSilica Sand Grinding Mill

Theball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.

Specification ofSilica Sand Grinding Mill

Type	Model	drum (mm)	volume (m3)	revolution (r/min)	motor (KW)	discharging size (mm)	Output (t/h)
Wet-Grate Ball Mills	MQ1530	1500×3000	4.5	26.5-29.8	95	0.3-0.074	6.1-3.1
	MQ2130	2100×3000	9.2	22.2-25.2	210	0.3-0.074	14-6.4
	MQ2430	2400×3000	12.2	20.8-23.5	240	0.3-0.074	18.5-8.7
	MQ2736	2700×3600	18.4	19.6-22.2	400	0.3-0.074	28-13
	MQ3245	3200×4500	32.8	18-20.4	800	0.3-0.074	49-24
	MQ3660	3600×6000	54.4	17-19.2	1600	0.3-0.074	82-38
Dry-Grate Ball Mills	MQG1515	1500×1500	2.2	26.5-29.8	60	0.4-0.074	5.2-1.9
	MQG1522	1500×2250	3.4	26.5-29.8	75	0.4-0.074	10.2-2.7
	MQG1530	1500×3000	4.5	26.5-29.8	95	0.4-0.074	14-3.6
	MQG2122	2100×2200	6.7	22.2-25.2	155	0.4-0.074	25-5
	MQG2424	2400×2400	9.8	20.8-23.5	210	0.4-0.074	29-7.5
	MQG2430	2400×3000	12.2	20.8-23.5	240	0.4-0.074	38-9.5
Over-flow Ball Mills	MQY1530	1500×3000	4.5	26.5-29.8	95	0.3-0.074	6-2.8
	MQY2136	2100×3600	11	19-25.2	210	0.3-0.074	12.8-6
	MQY2430	2400×3000	12.2	17.8-23.5	240	0.3-0.074	16.6-7.8
	MQY2740	2700×4000	20.4	16.8-22.2	400	0.3-0.074	27.7-13
	MQY3254	3200×5400	39.4	15.5-20.4	1000	0.3-0.074	52.8-25.9
	MQY3660	3600×6000	54.4	14.5-19.2	1250	0.3-0.074	74.1-32.4
